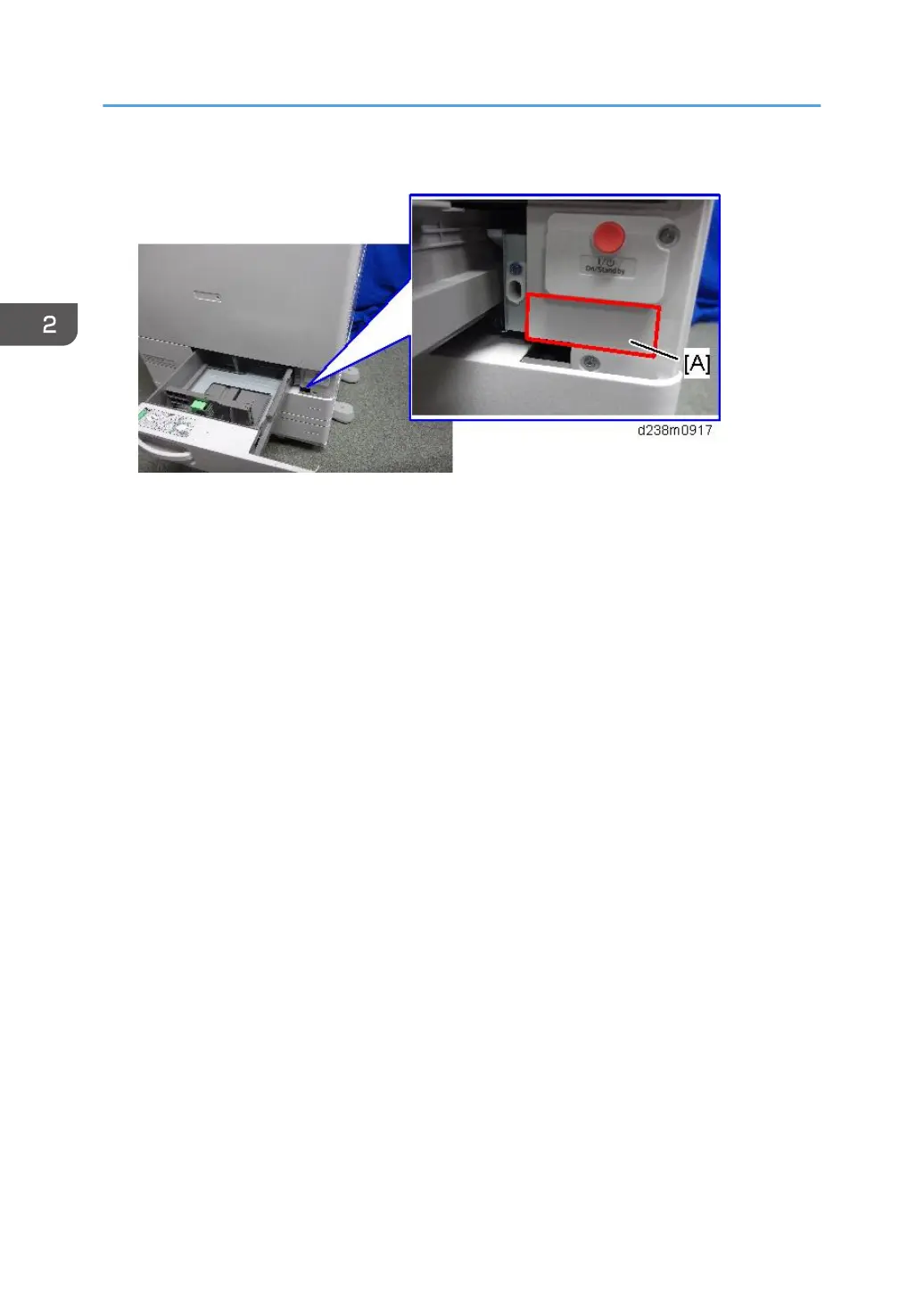

21. Attach the warning decal [A].

22. Reassemble the machine.

23. Connect the power cord, and then check that the heater is being powered and heated.

2. Installation

118
