Ricoh MP C2504 User Manual

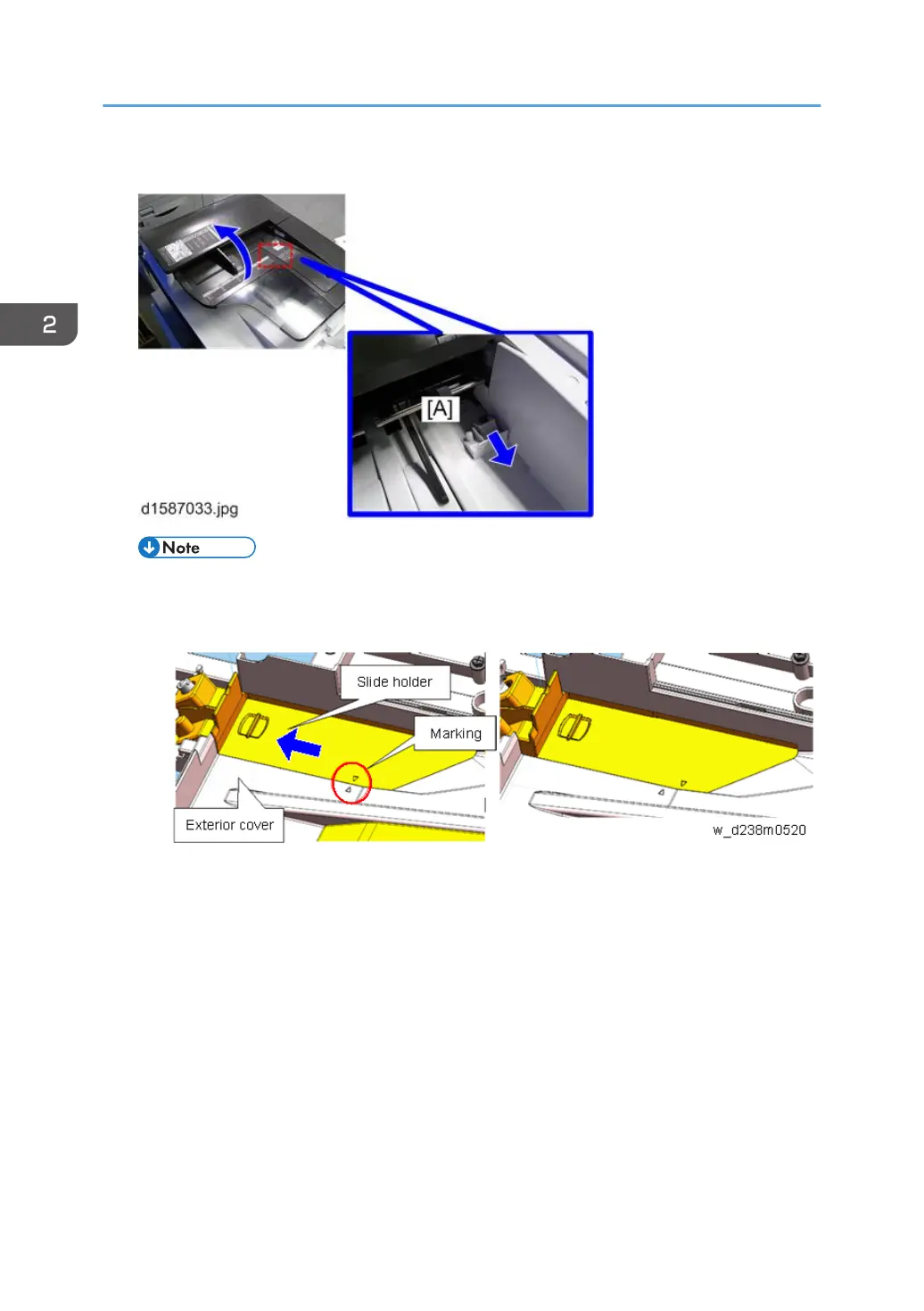

15. Slide the stamp holder [A] out and install the stamp cartridge in it, if necessary.
• After the stamp installation, be sure to slide the holder in correctly. Make sure to slide it in
thoroughly until the reference marks on the holder and exterior cover are aligned. If it is not
mounted correctly, the machine detects a J001 paper jam.
2. Installation
150

Ricoh MP C2504 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Resolution	1200 x 1200 dpi
Scan Type	Flatbed, ADF
Max Scan Resolution	600 x 600 dpi
Copy Resolution	600 x 600 dpi
Max Paper Size	A3
Duplex Printing	Yes
Memory (RAM)	2 GB
Print Speed	25 ppm (A4)
Copy Speed	25 cpm (A4)
Fax Resolution	200 x 200 dpi
Paper Capacity	1200 sheets
Connectivity	USB, Ethernet, Wi-Fi
Dimensions	587 x 685 x 913 mm
Control Panel	9-inch Smart Operation Panel
