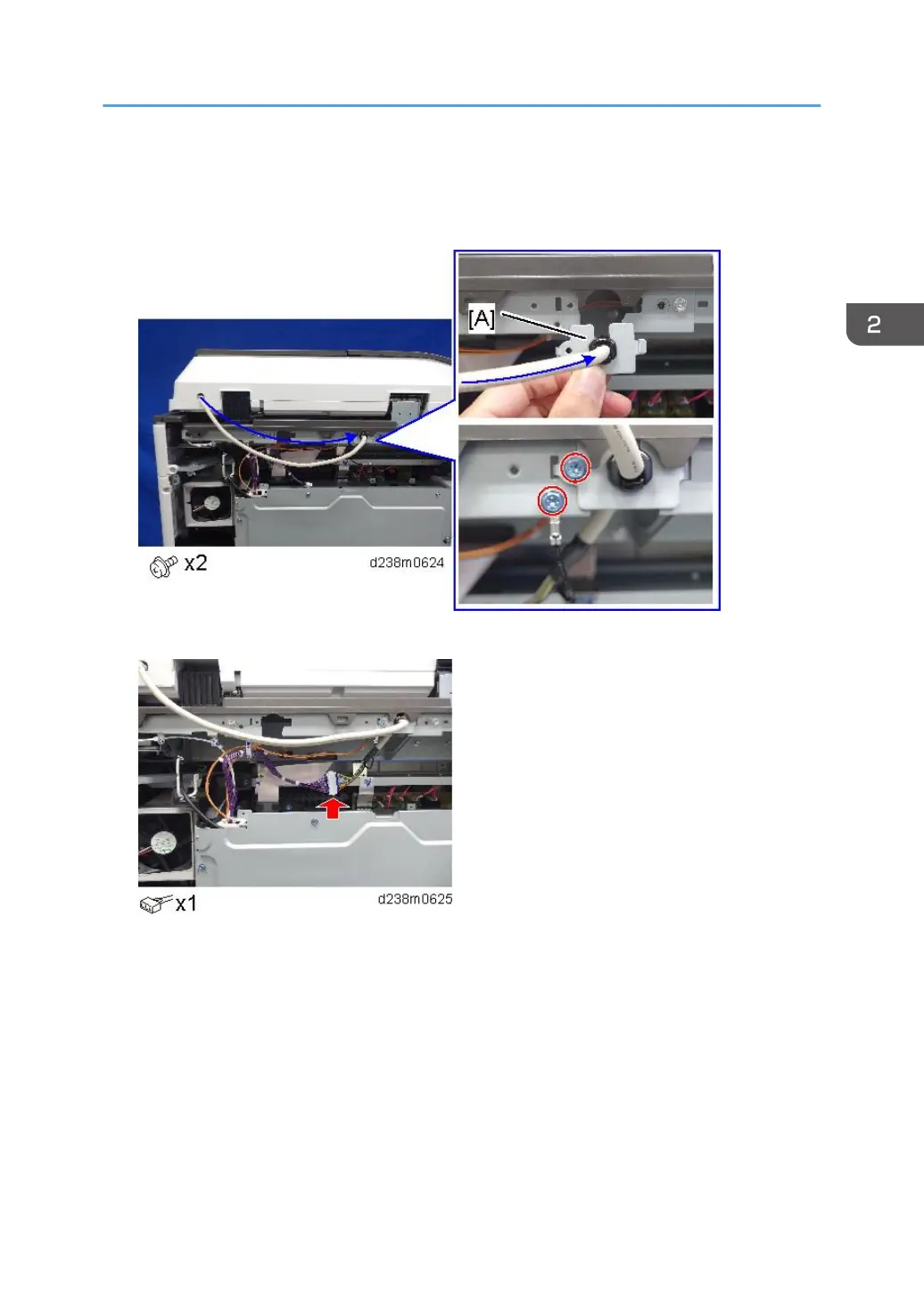

11. Connect the ARDF cable as shown and mount the bracket [A] on the machine’s rear

frame.

Make sure to connect the grounding wire.

12. Connect the scanner cable to the connector at the machine’s rear.

13. Reattach the rear cover.

14. Lift the ARDF original tray.

ARDF DF3090 (D779)

149
