Ricoh MP C2504 - Page 157

To Next Page

To Previous Page

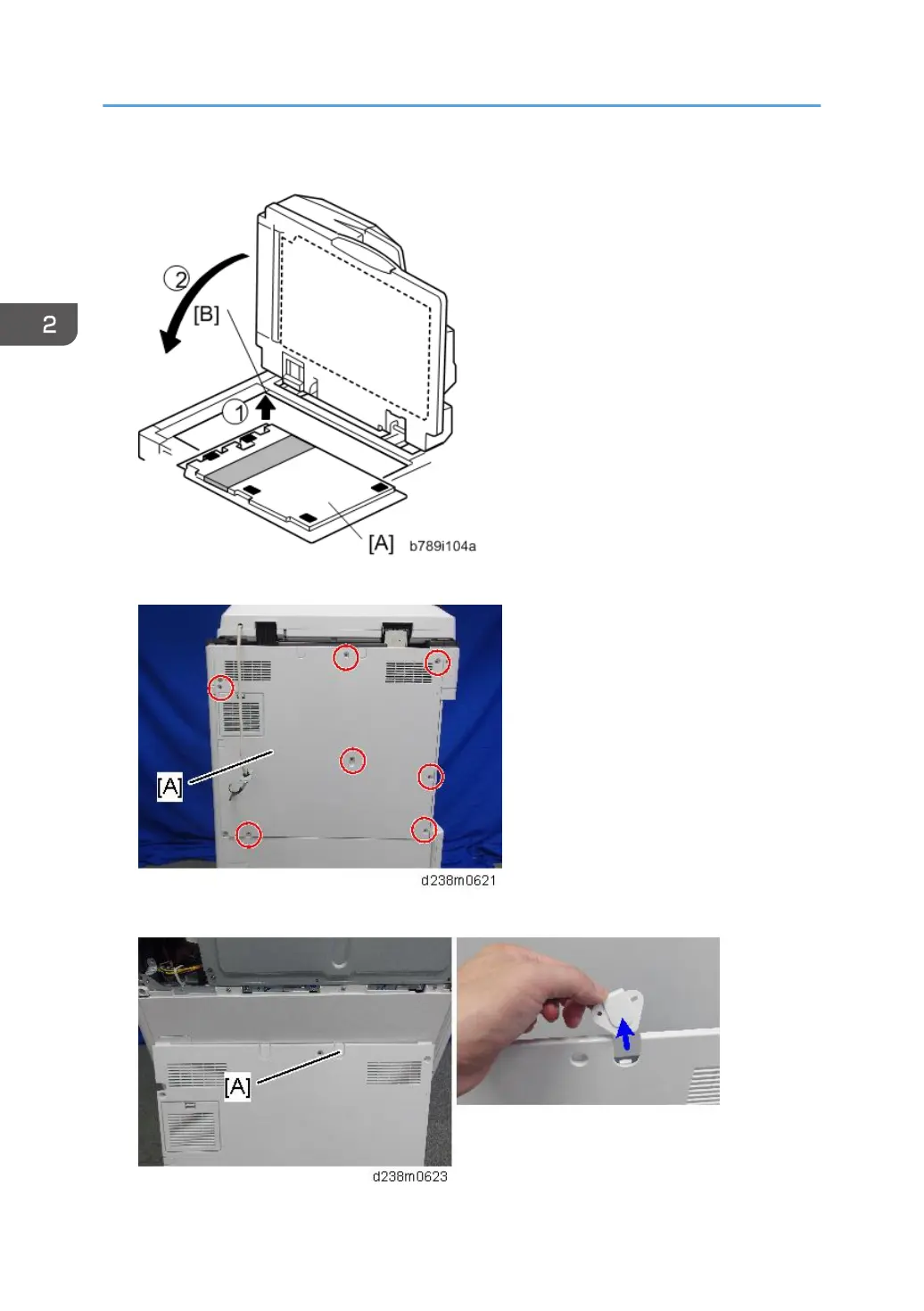

8. Open the ARDF and check that the platen sheet is correctly attached.

9. Remove the rear cover [A].

10. Remove the small disposable cover [A] on the rear cover (on the right side).

2. Installation

148
