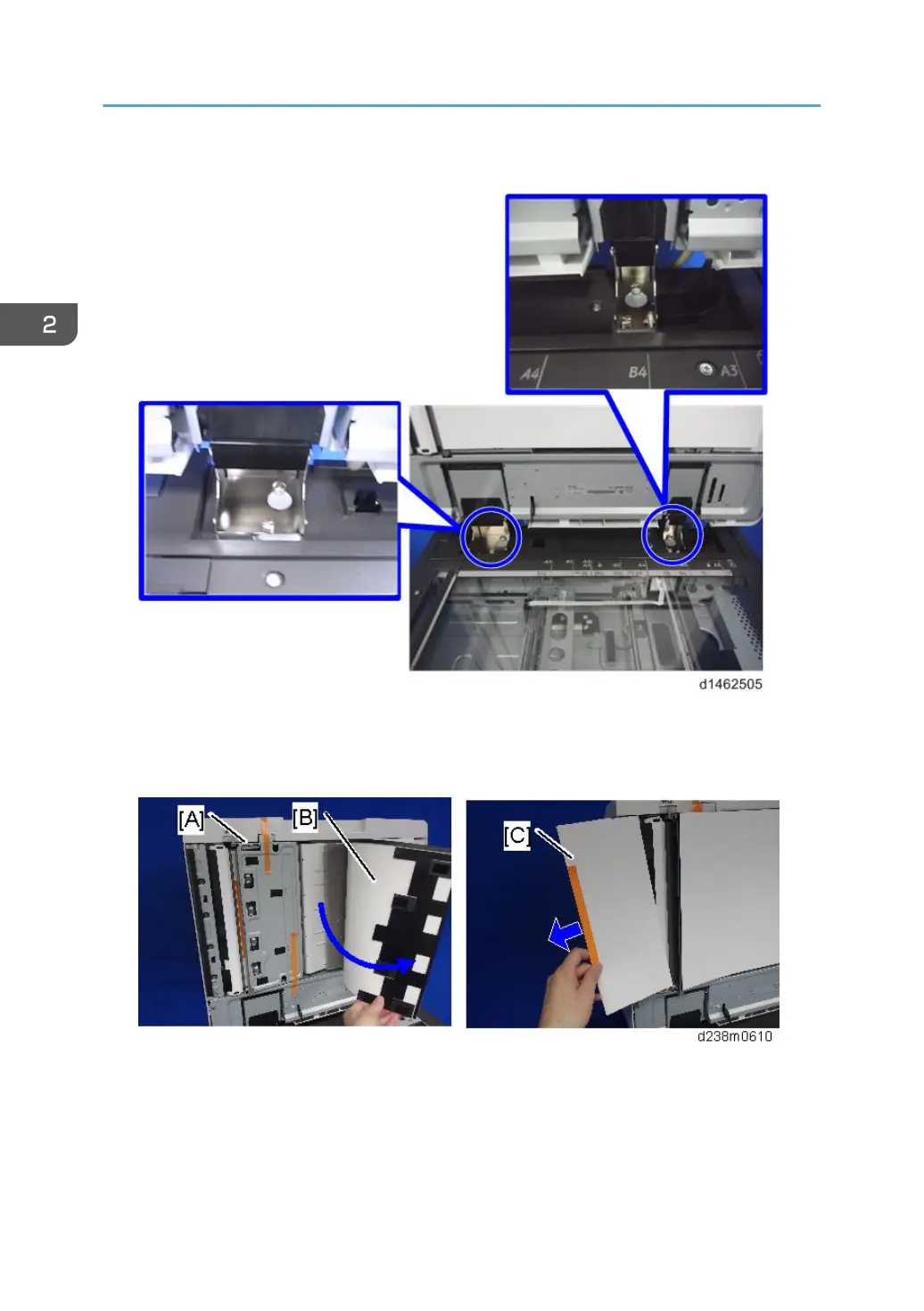

6. Fix the SPDF to the machine (coin screws×2)
7. Release the lever [A], then open the pressure plate sheet [B], and gently remove the
protective sheet [C].
8. Remove the filament tape, and shut the pressure plate sheet.
9. Remove the platen sheet [A], and set it on the exposure glass.
Align it with the left scale and rear scale of the printer.
2. Installation
156
