Ricoh MP C2504 - Page 166

To Next Page

To Previous Page

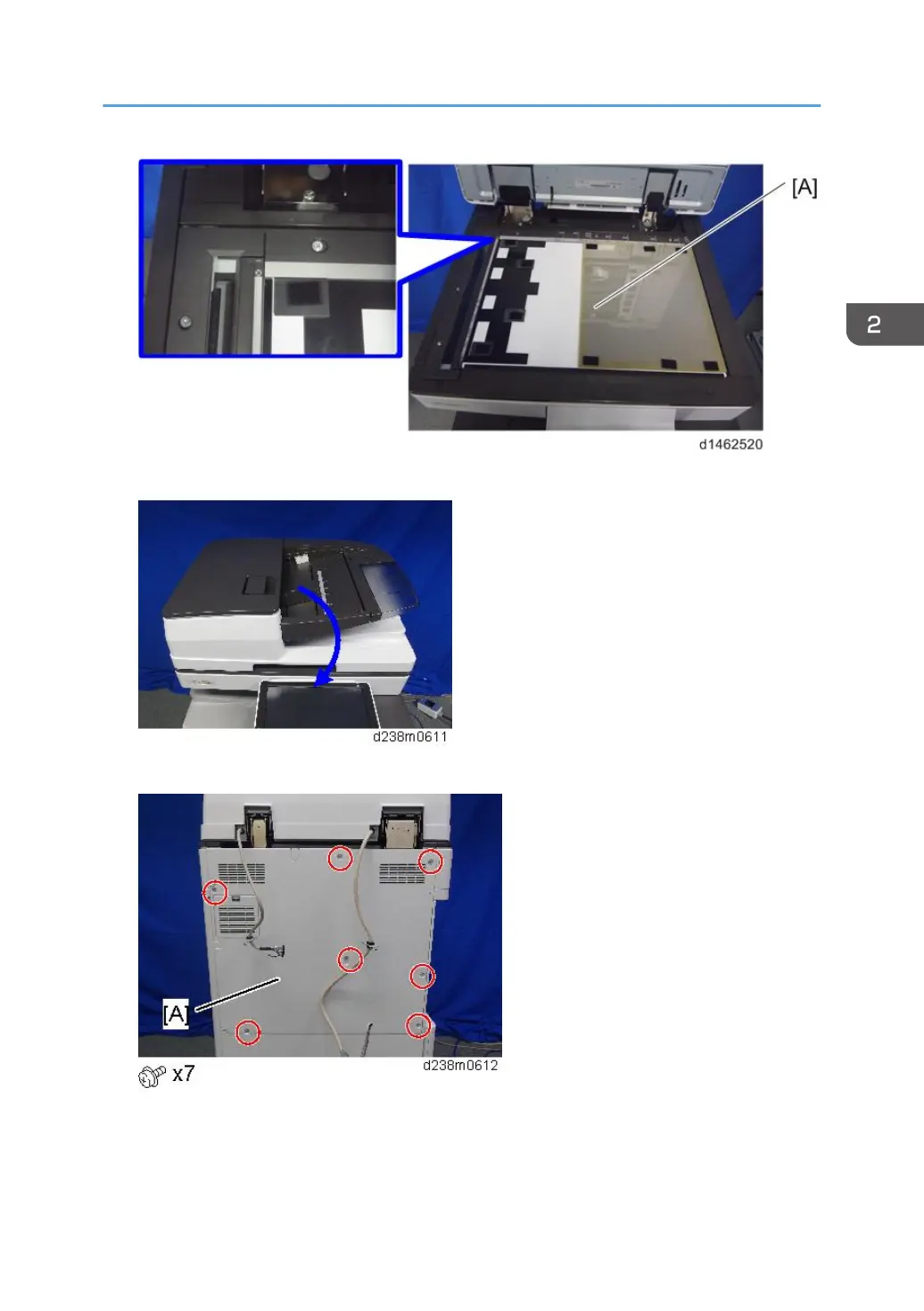

10. Close the SPDF slowly, and attach the platen sheet and SPDF.

11. Remove the rear cover [A].

SPDF DF3100 (D3B0)

157
