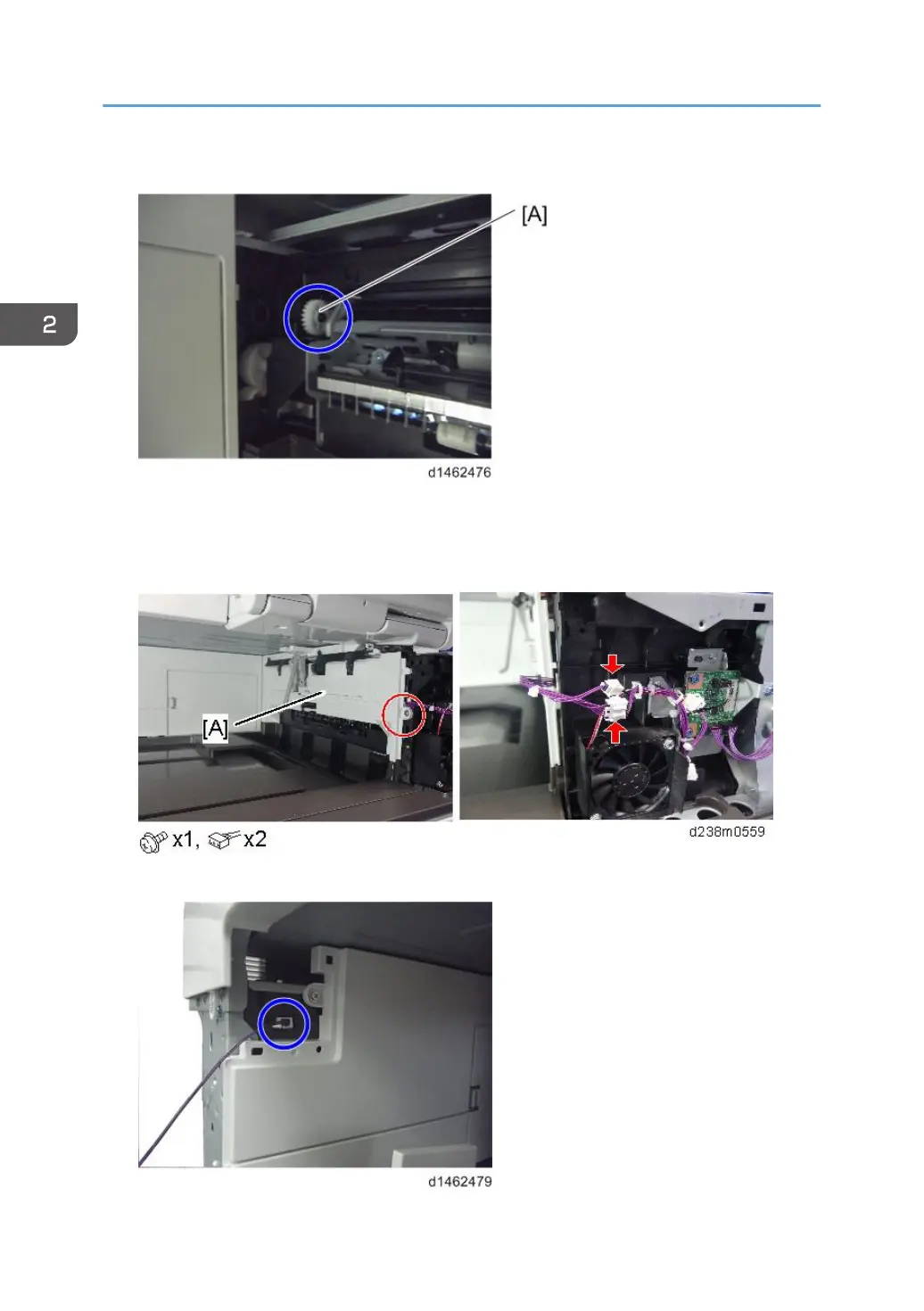

11. Attach the gear [A] provided with the accessories.

12. Attach the 1-bin tray unit [A].

Make sure to engage it with the gear attached in the previous step.

Take care that the harness is not trapped between the 1-bin tray unit and the machine frame.

13. Attach the harness provided with the accessories.

2. Installation
