14. Attach the tray support bar [A] ( ×1).

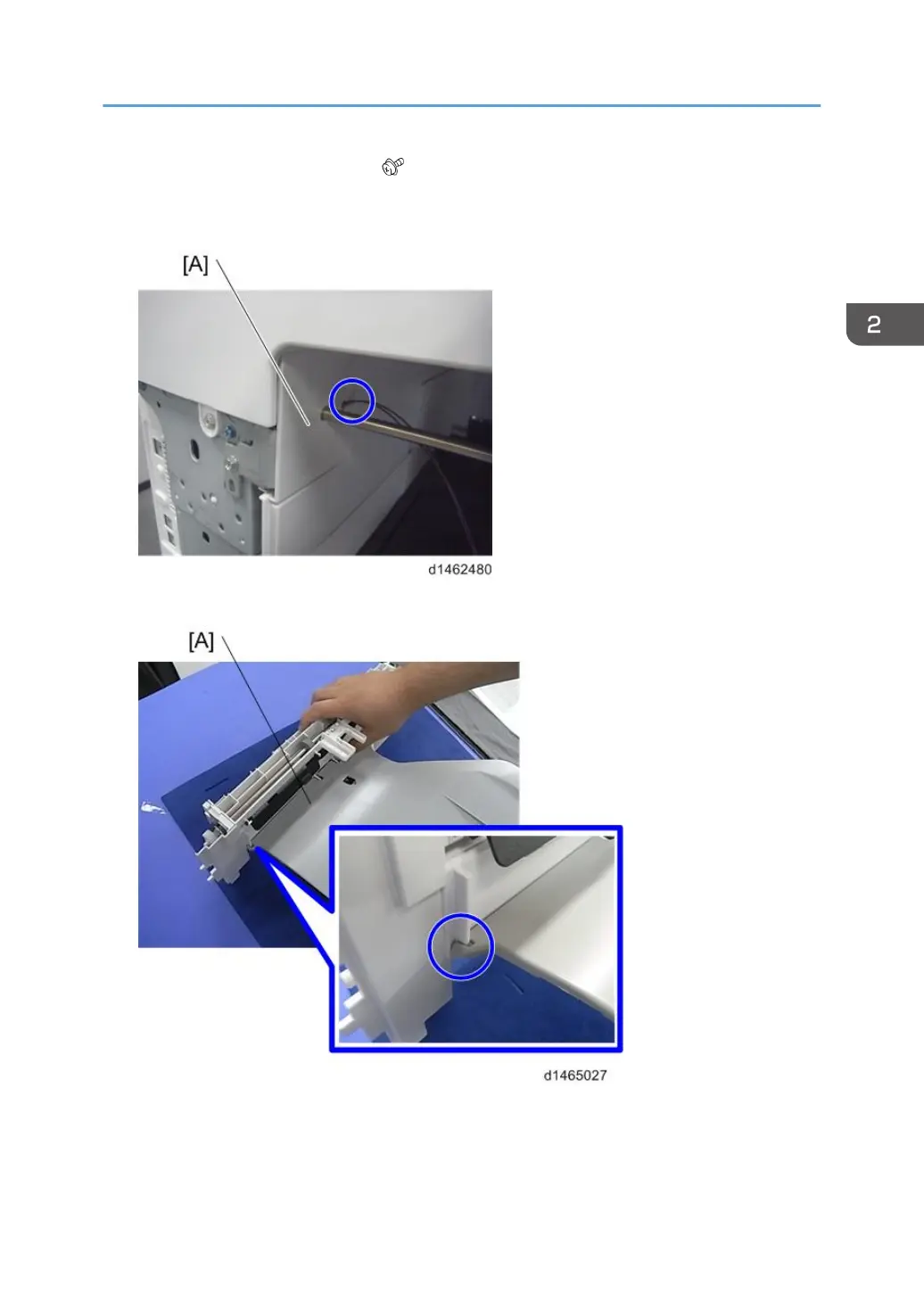

When attaching the tray support bar [A], make sure that the harness attached in the previous step
goes through the slit in the tray support bar circled in blue and comes outside of it as shown below.
15. Hook the 1-bin tray [A] onto the 1-bin tray unit, aligning the positions in the blue circle.
1 Bin Tray BN3110 (D3CQ)
