Ricoh MP C2504

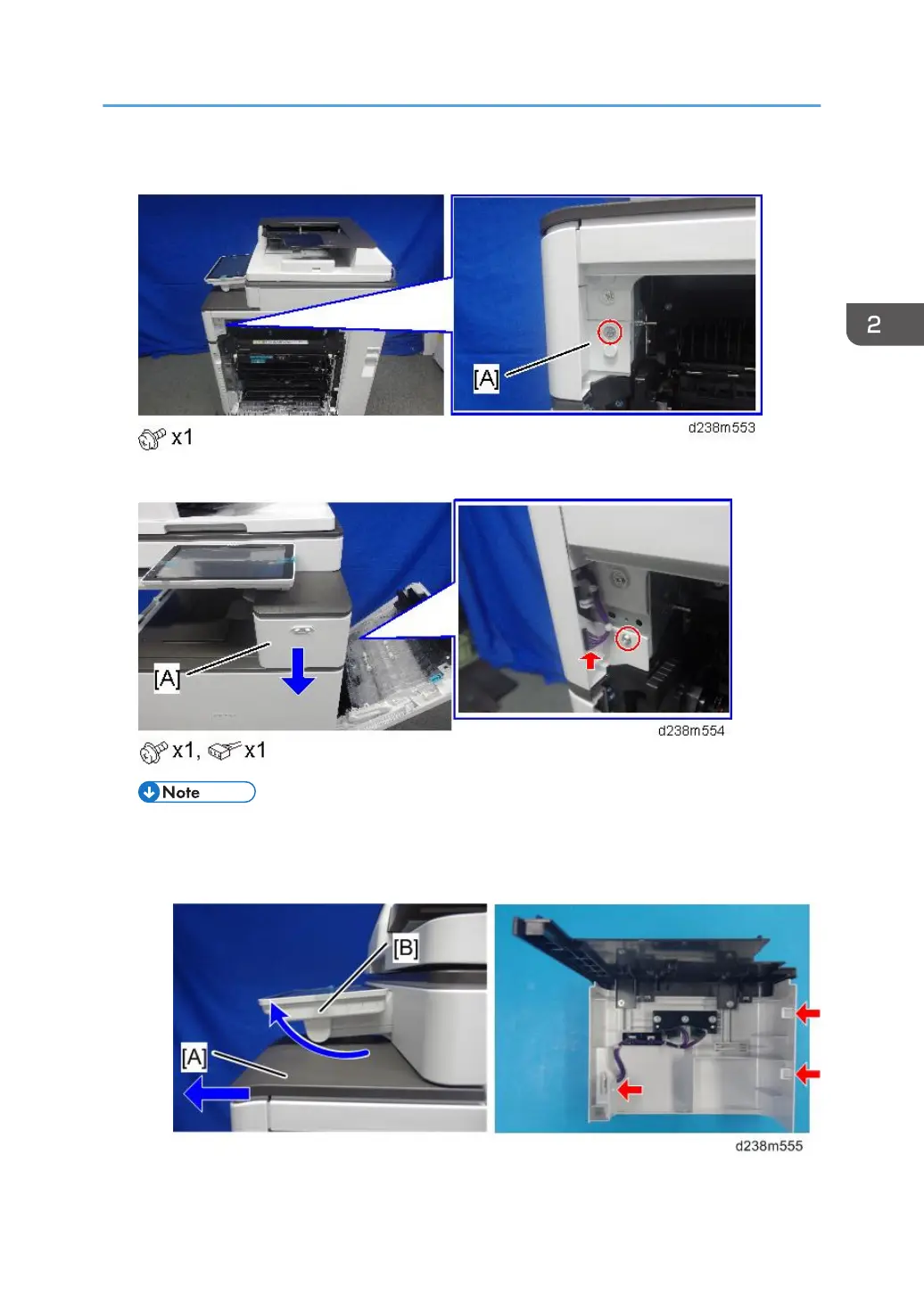

6. Open the right door, and then remove the small cover [A].
7. Remove the screw and connector, and then remove the front upper cover [A].
• Remember that there are three tabs at the positions of the red arrows.
• Tilt the operation panel [B] upward to a horizontal position, and then remove the front upper
cover [A].
Side Tray Type M3 (D725)
183
