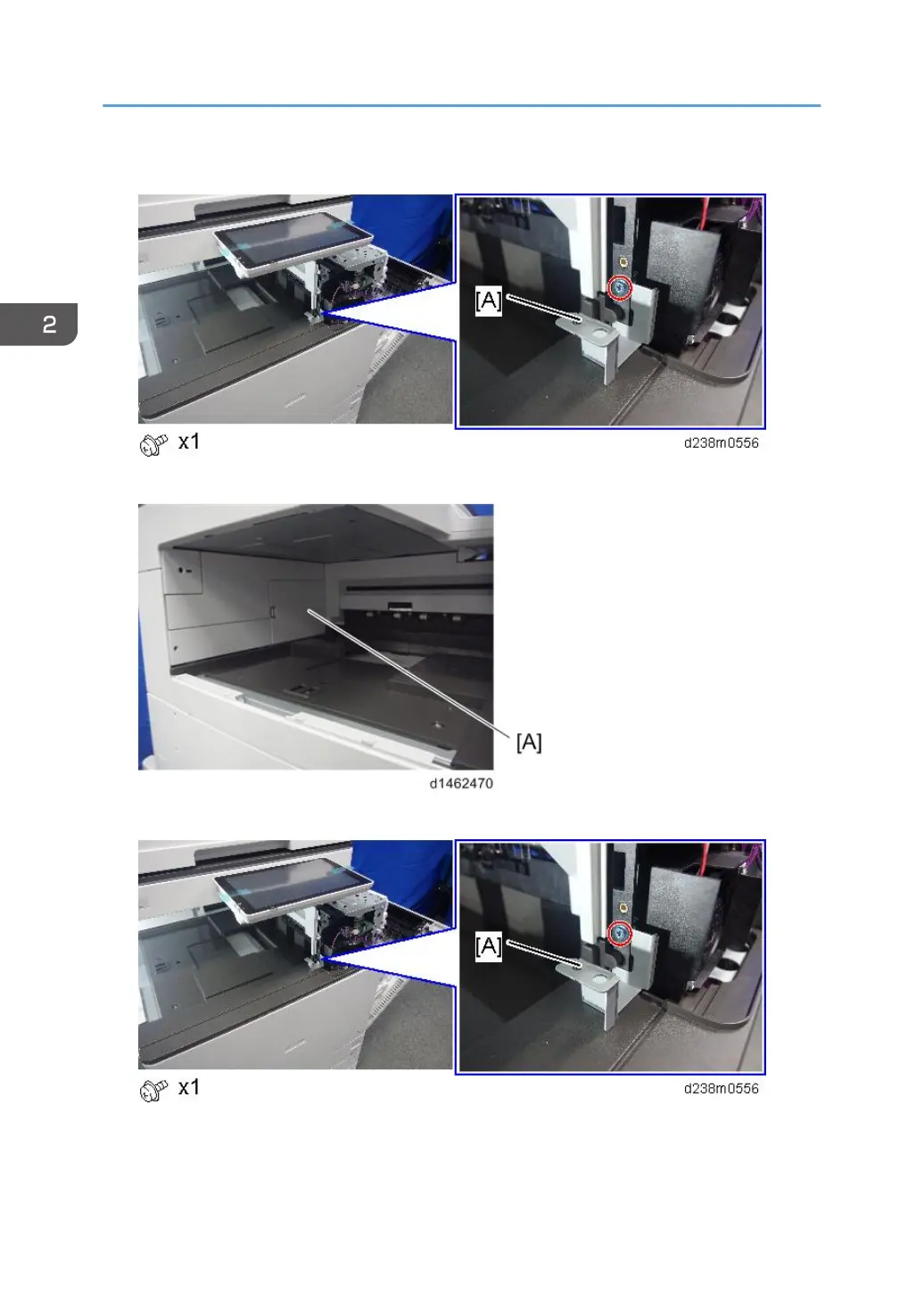

8. Attach the bracket [A].

9. Remove the connector cover [A].

10. Attach the bracket [A].

11. Reattach the front upper cover, and close the right door.
