Ricoh MP C2504 - Page 197

To Next Page

To Previous Page

- Internal Shift Tray SH3070 (D691)

- Side Tray Type M3 (D725)

- Internal Finisher SR 3180 (D766)

- Internal Finisher SR 3130 (D690)

• To use together with the "1 Bin Tray BN3110 (D3CQ)", attach the "1 Bin Tray BN3110 (D3CQ)"

first before installing the bridge unit.

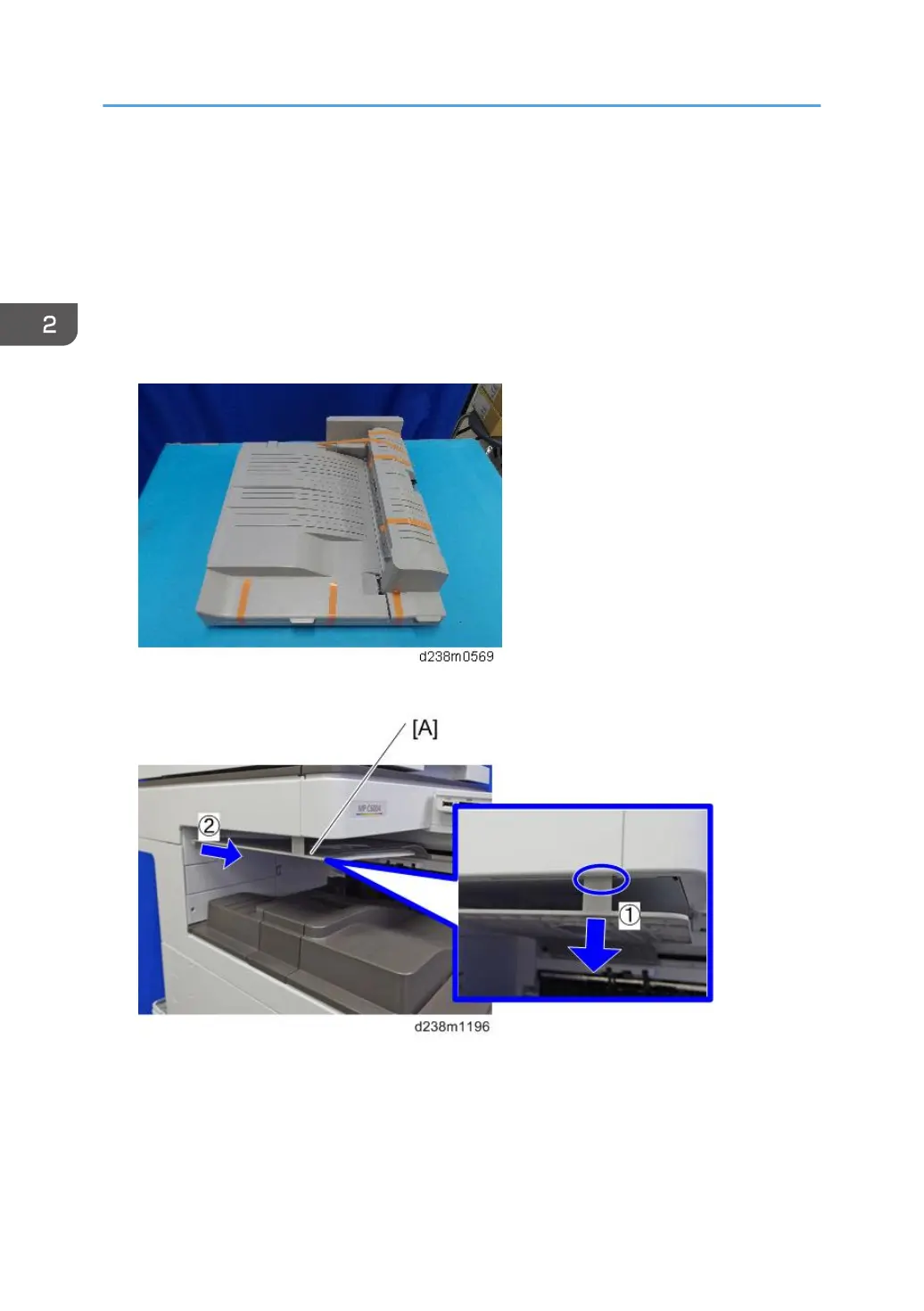

1. Remove the orange tapes, shipping retainers, and provided accessories (fixing screws,

etc.).

2. Remove the interval tray [A].

2. Installation

188
