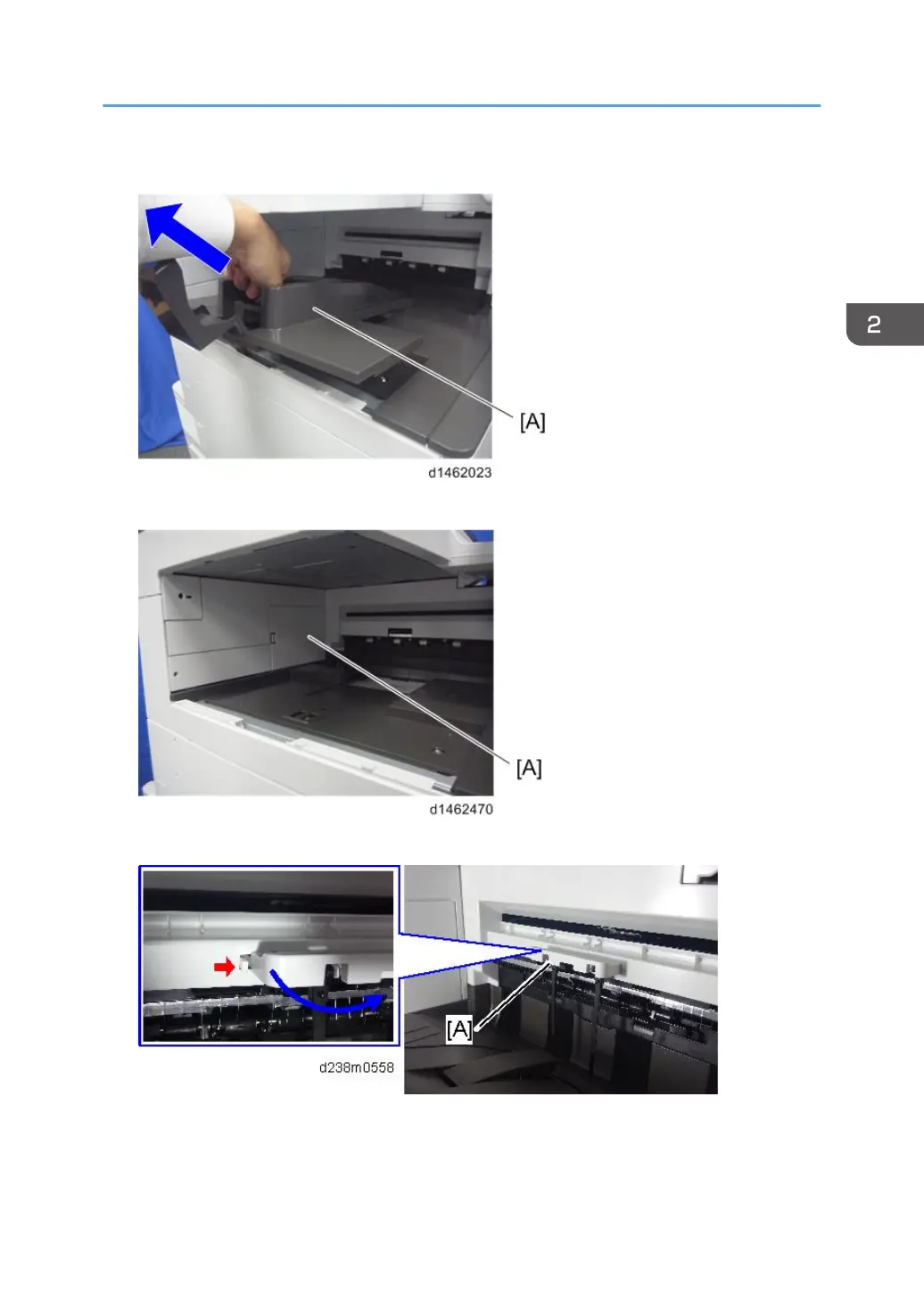

3. Remove the paper exit tray [A].

4. Remove the connector cover [A].

5. Remove the paper exit feeler [A].

Bridge Unit BU3070 (D685)

189
