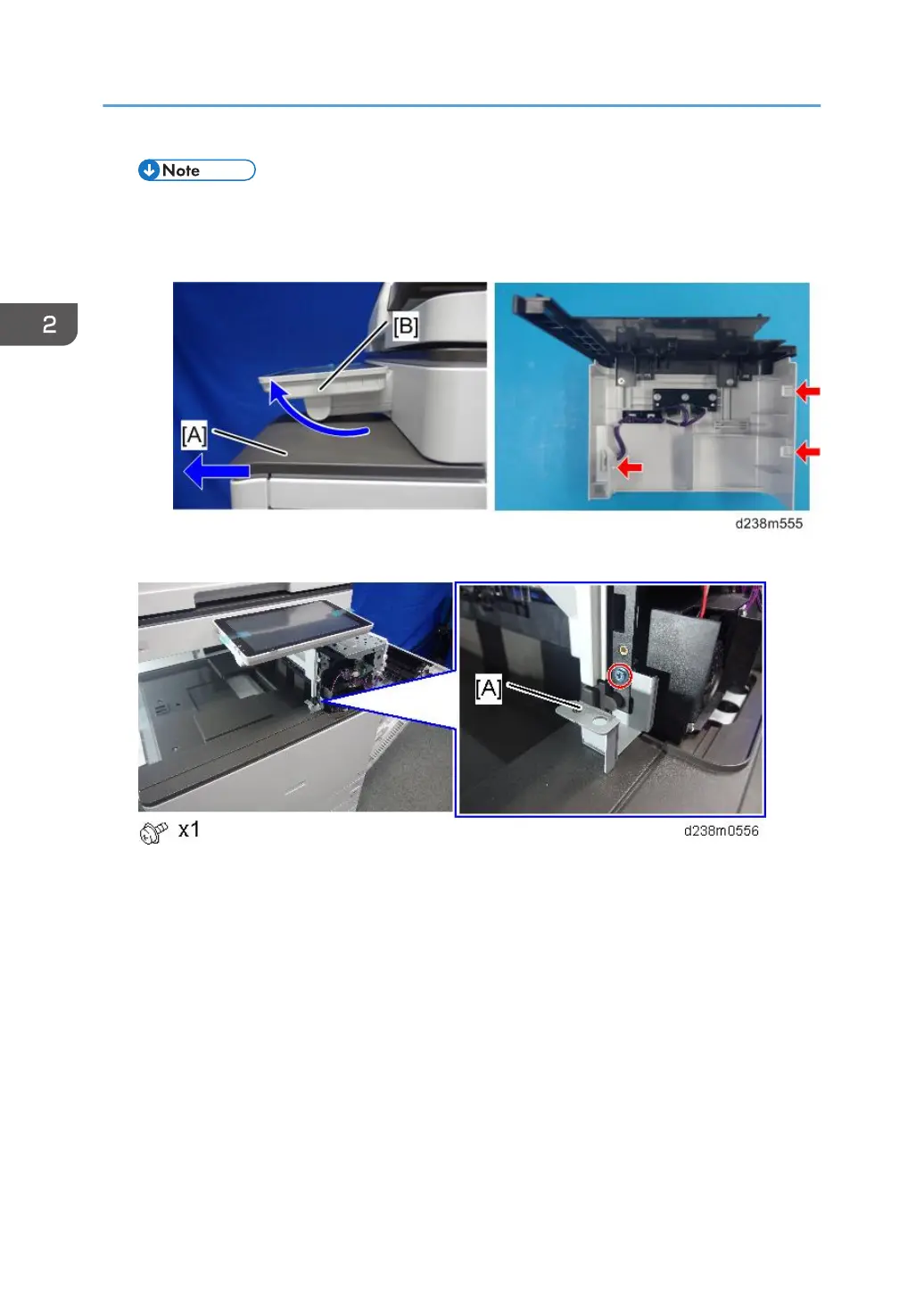

• Remember that there are three tabs at the positions of the red arrows.

• Tilt the operation panel [B] upward to a horizontal position, and then remove the front upper

cover [A].

12. Attach the right front bracket [A].
