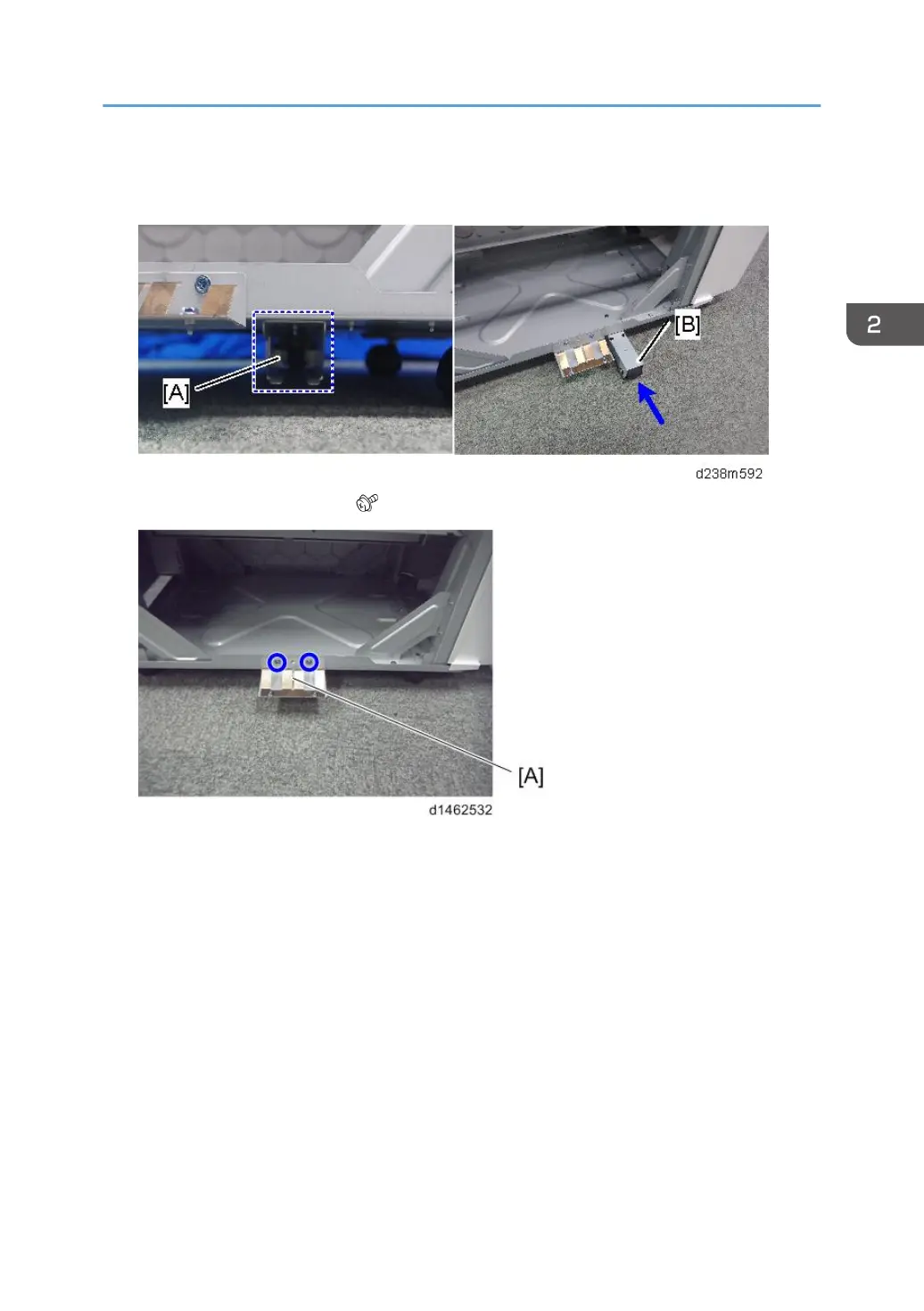

1. After unpacking, immediately attach the stabilizer [B] to prevent toppling.

Push it in thoroughly along the guide [A] until it clicks.

2. Attach the ground plate [A] ( ×2).

Booklet Finisher SR3220 (D3B9)

197
