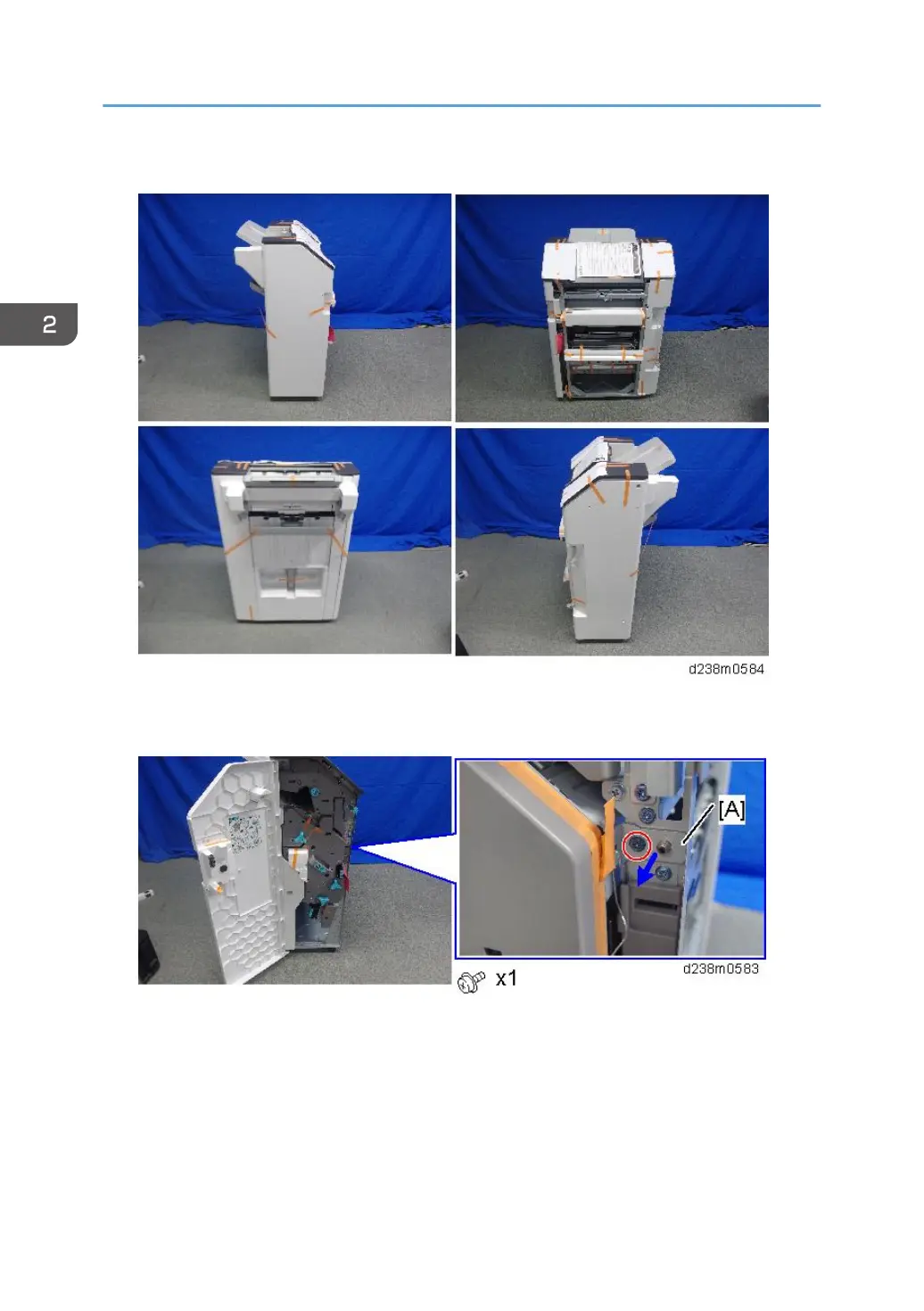

3. Remove the external orange tapes and shipping retainers.

4. Open the front cover, and then remove the filament tape and packing materials.

5. Remove the fixing bracket [A].

2. Installation
