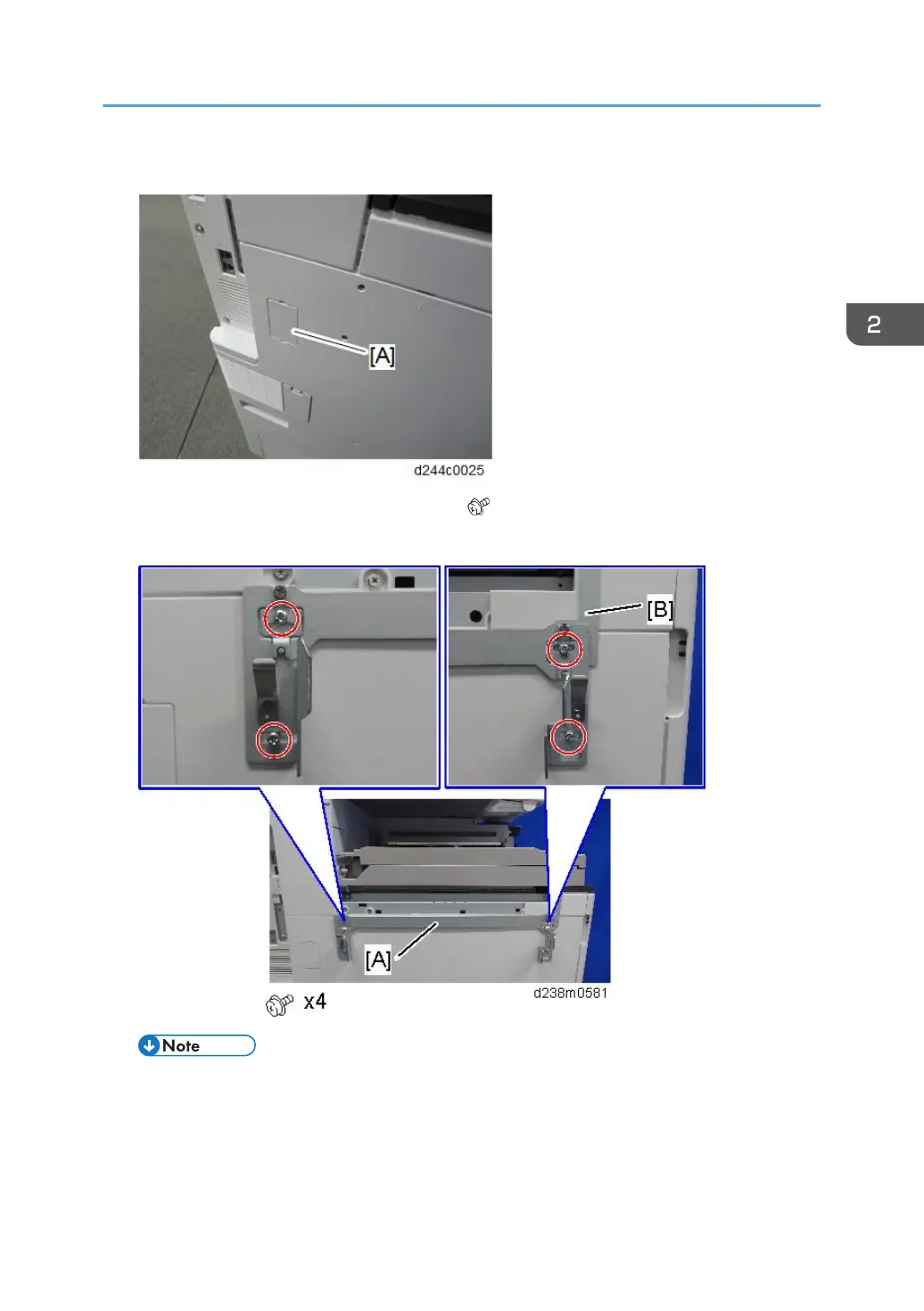

12. Remove the connector cover [A] on the rear left side of the main machine.
13. Attach the joint bracket [A] to the machine ( ×4 : 4x12).
Tighten the joint bracket [A] and bracket [B] of the bridge unit together.
• Attach the screw so that the screw head is at the center of the mark.
Booklet Finisher SR3220 (D3B9)
