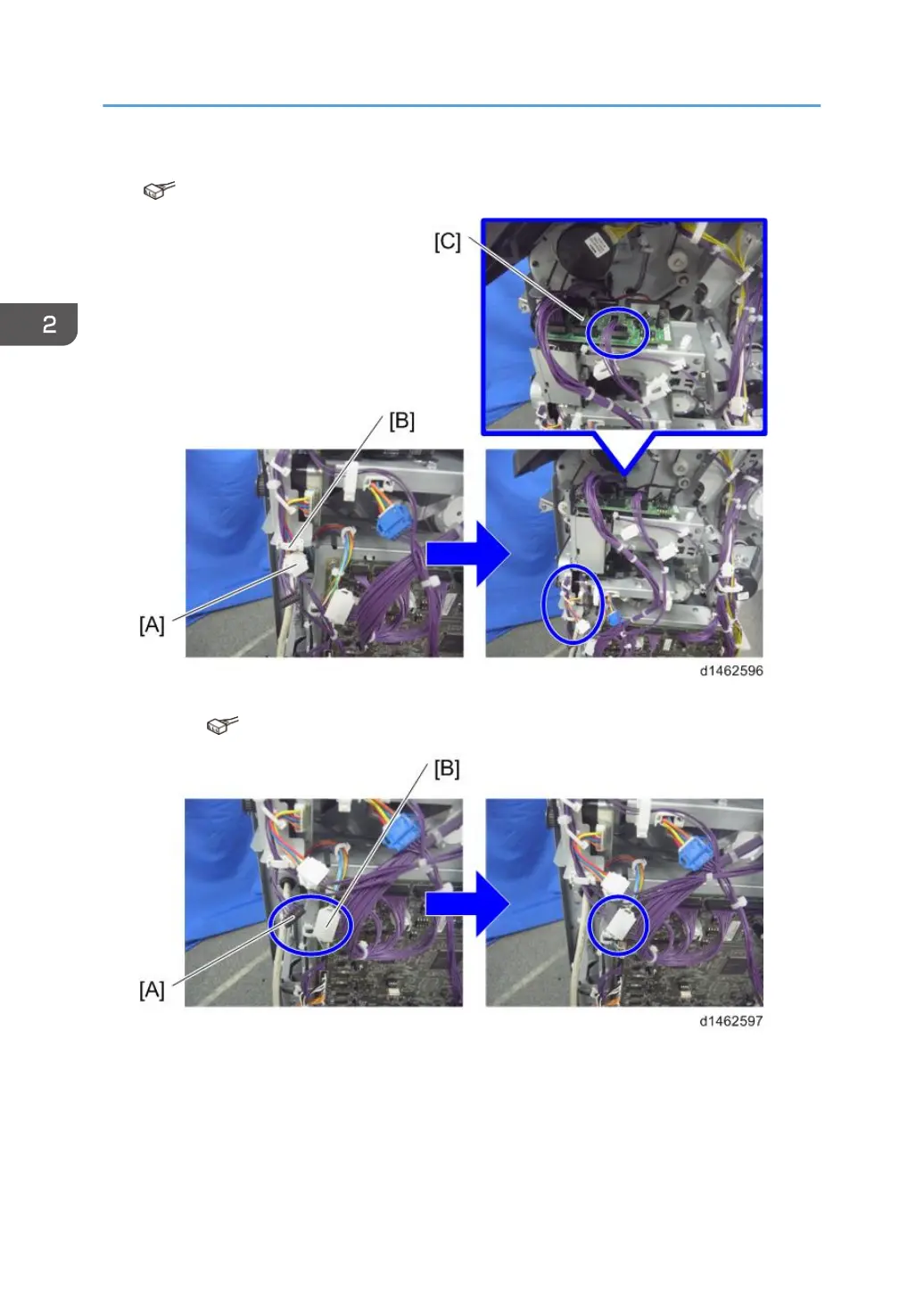

19. Remove the harness [A] from the clamp [B], and connect it to the punch unit board [C]

( ×1).

20. Connect the harness [A] of the side-to-side detection unit to the relay connector [B] of the

harness ( ×1).

2. Installation

216
