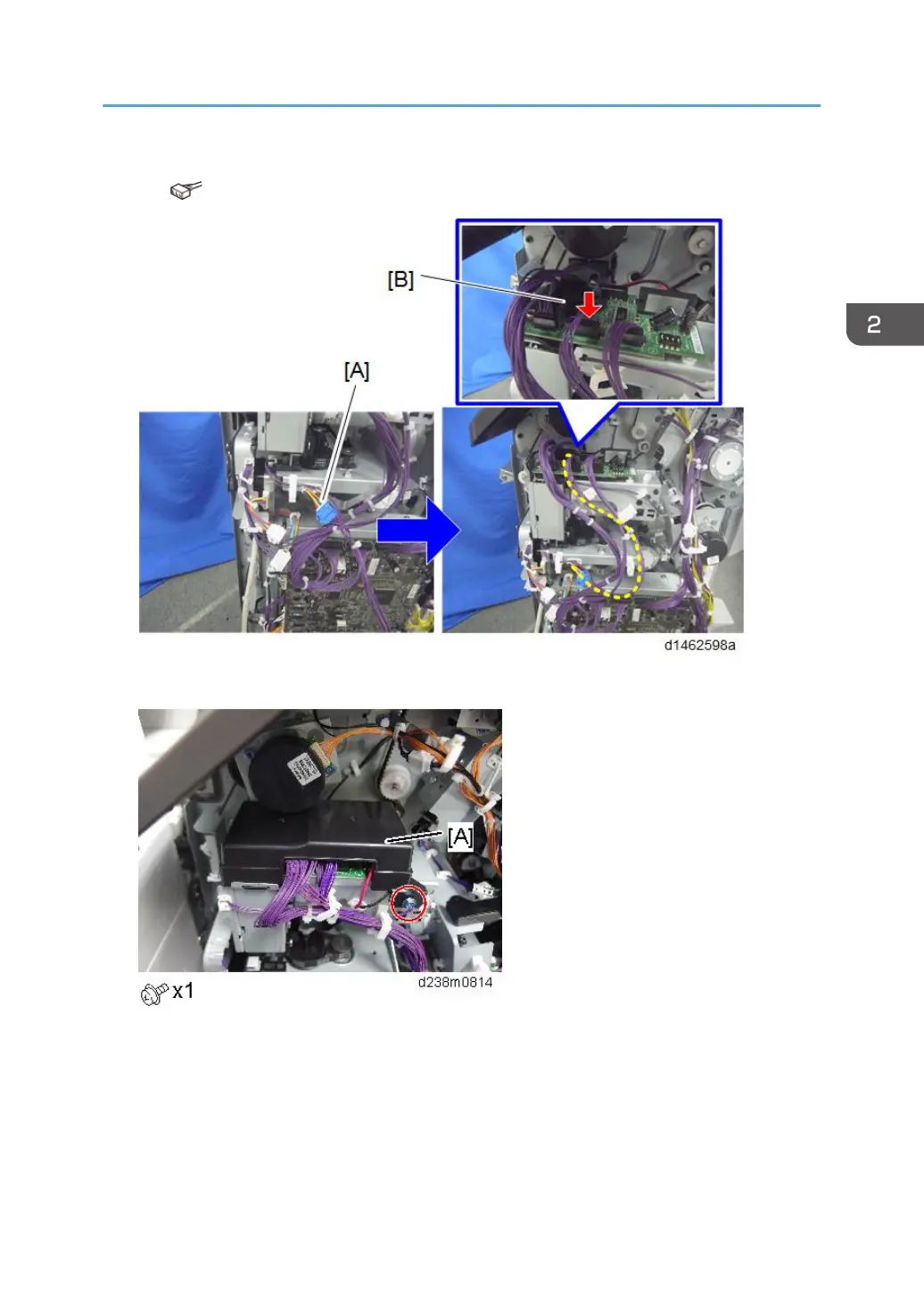

21. Connect the harness [A] of the punch unit movement motor unit to the punch unit board

[B] ( ×1).

22. Attach the supplied cover [A] to the punch unit board.

Punch Unit PU3050

217
