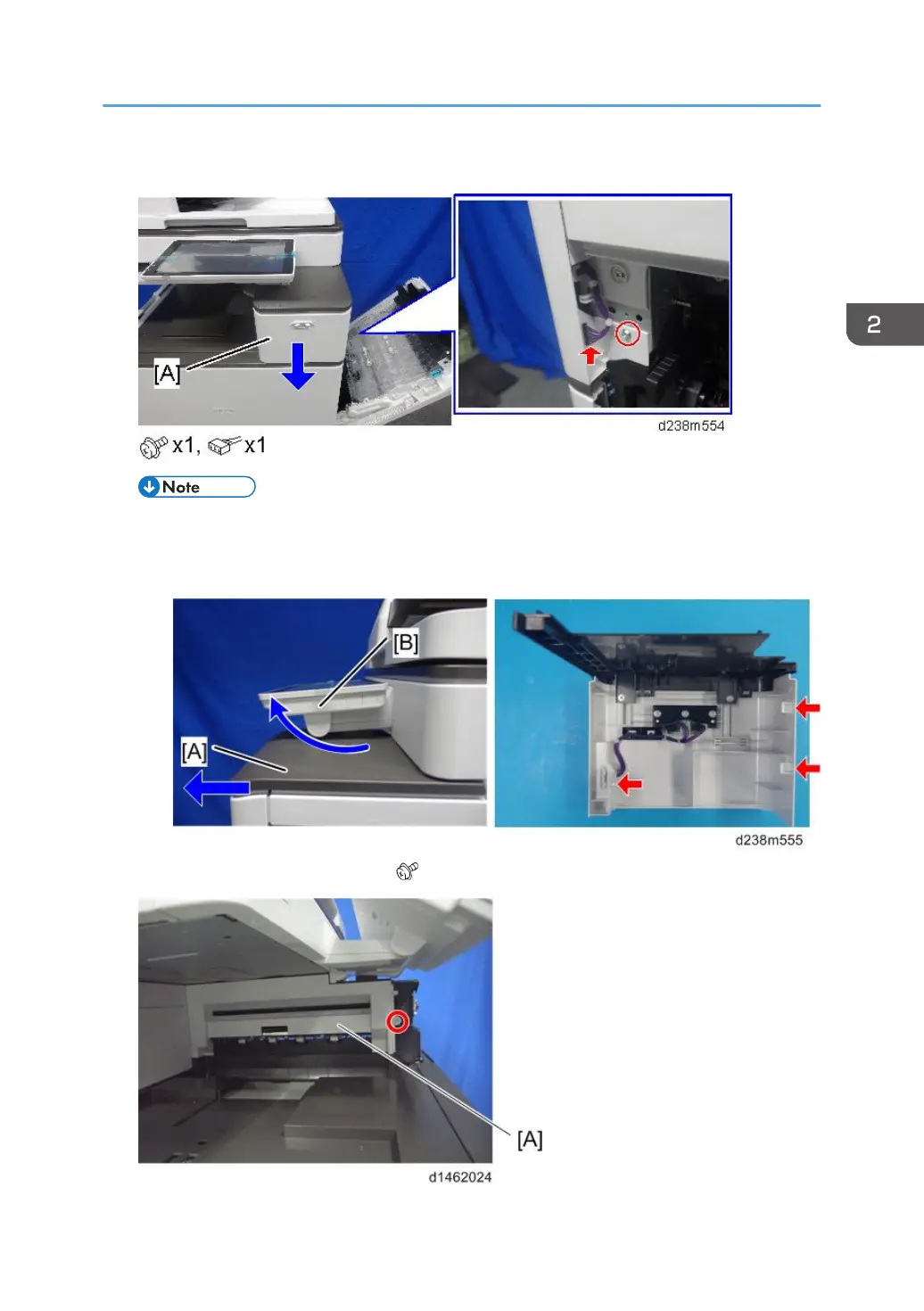

9. Remove the screw and connector, and then remove the front upper cover [A].
• Remember that there are three tabs at the positions in the red arrows.
• Tilt the operation panel [B] upward to a horizontal position, and then remove the front upper
cover [A].
10. Remove the paper exit cover [A] ( ×1).
Internal Finisher SR3130 (D690)
