Ricoh MP C2504

To Next Page

To Previous Page

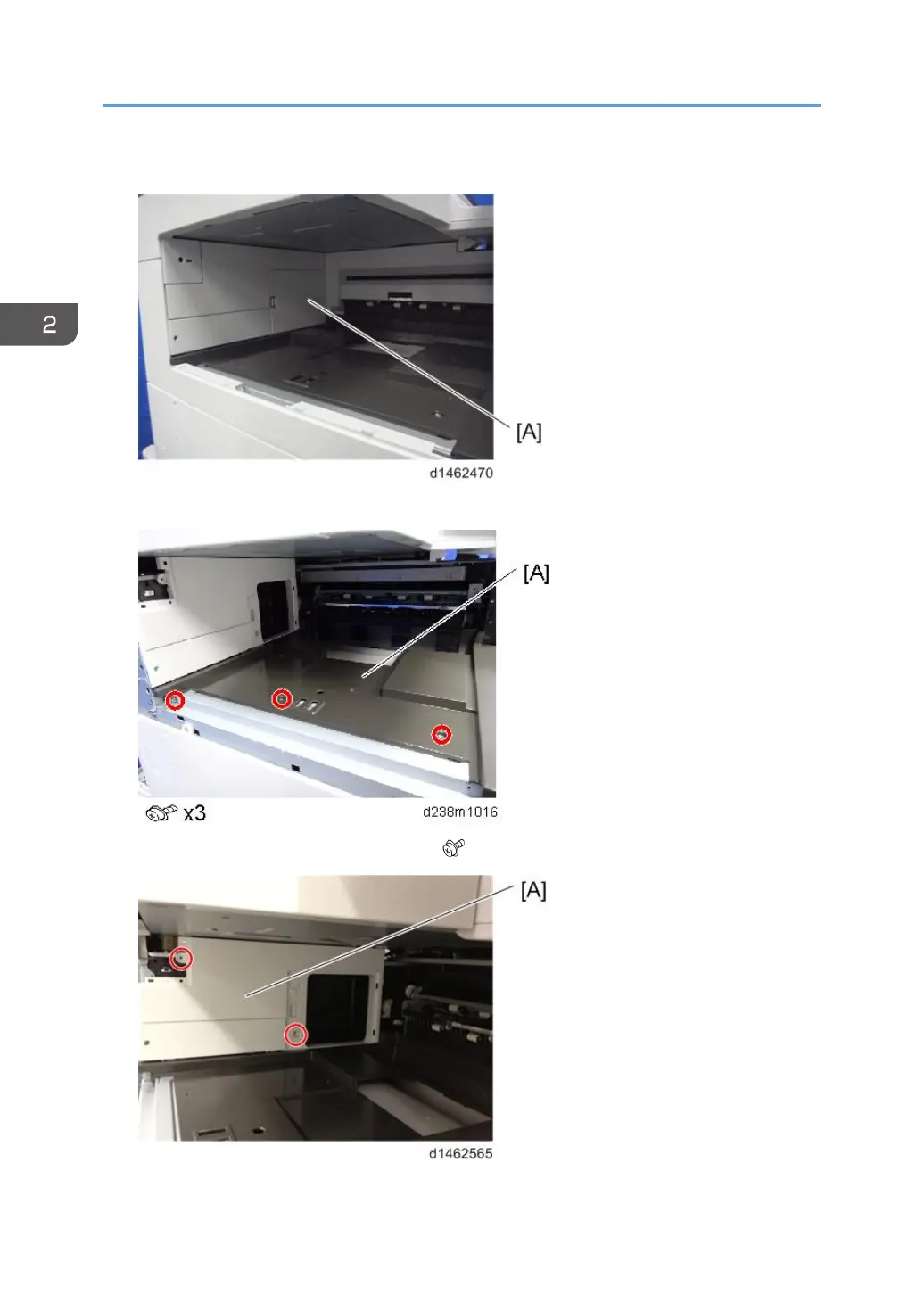

11. Remove the connector cover [A].

12. Remove the paper exit lower cover [A].

13. Remove the upper rear inner cover [A] ( ×2)
