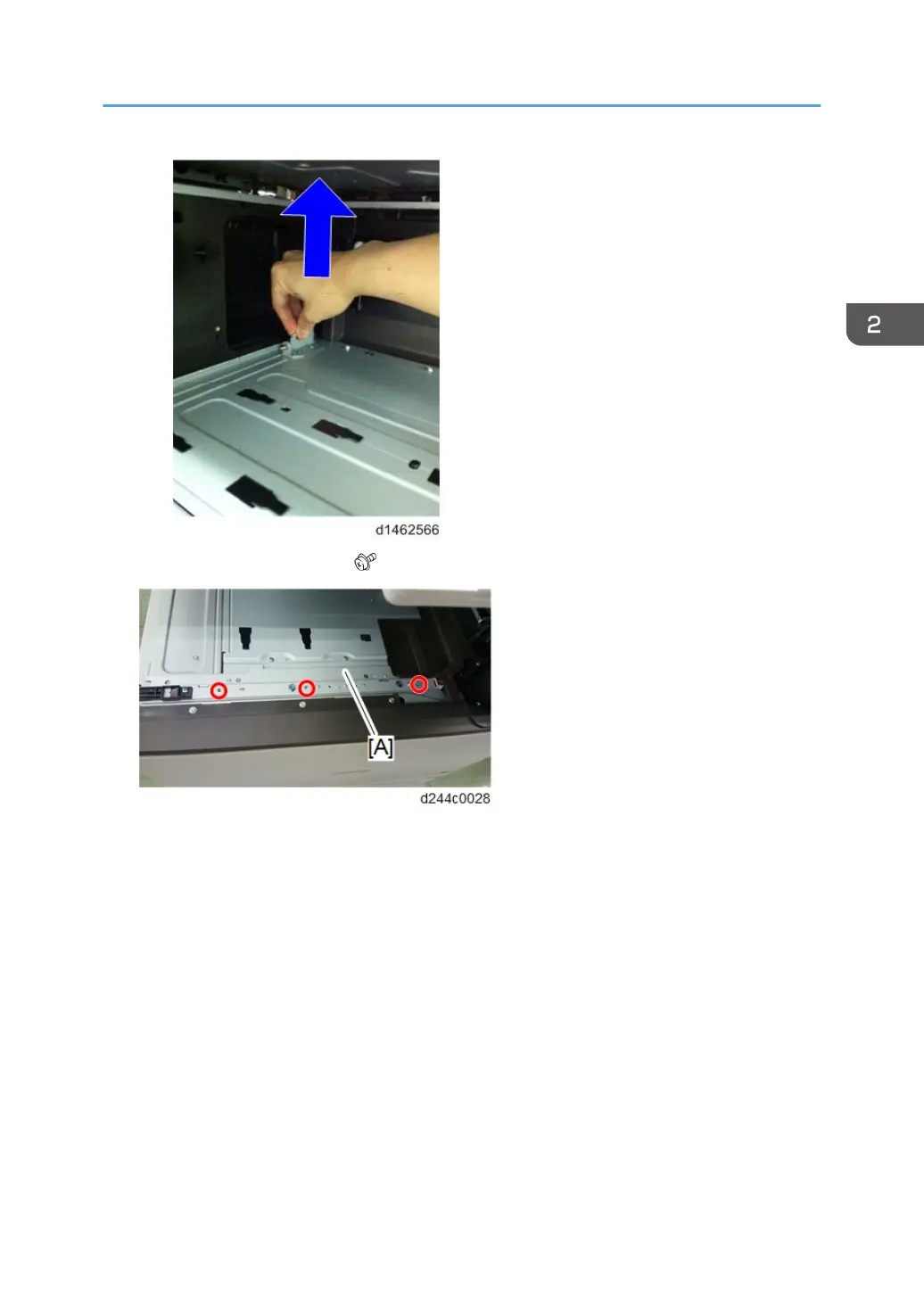

16. Attach the bottom plate [A] ( ×3)
17. Attach the upper rear inner cover.
18. Attach the paper exit cover.
19. Reattach the connector cover, front upper cover, and then close the right door.
20. Remove the driven roller [B] at the machine’s exit tray and attach the supplied driven
roller [A].
• Insert a flathead screwdriver into the depression in the center, and then, lifting the driven
roller, unlock the part indicated by the red arrow.
• When attaching the driven roller, push its center all the way in until it clicks.
