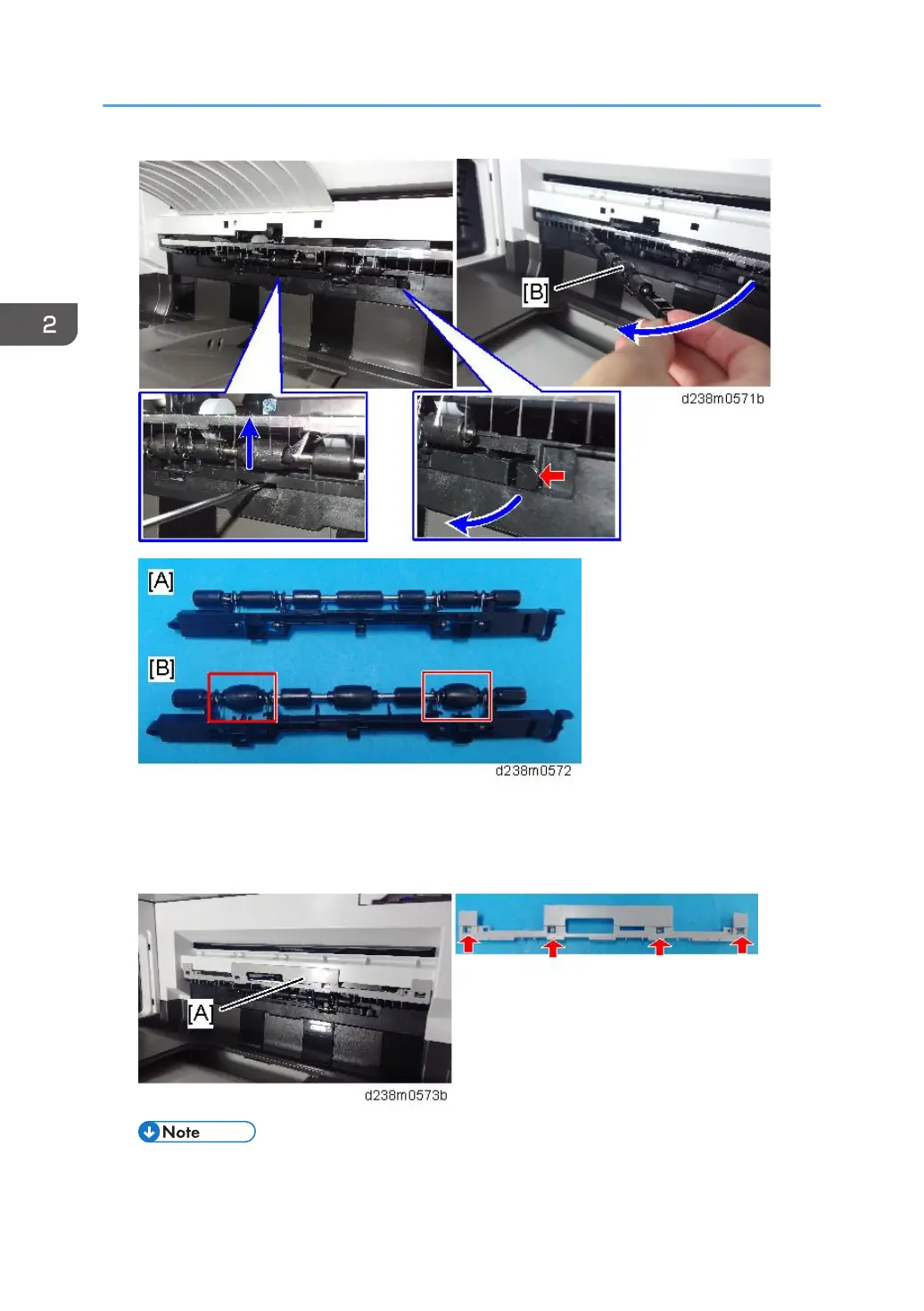

[A]: The supplied driven roller has flat rollers.
[B]: The machine’s standard driven roller has drum-type rollers (as indicated by red frames).
21. Attach the paper support guide [A] (Tab x4).
• Up to this point, the procedure is the same as punch unit installation (for fitting the punch unit,
refer to Step 3 and later of the Punch unit installation procedure).
