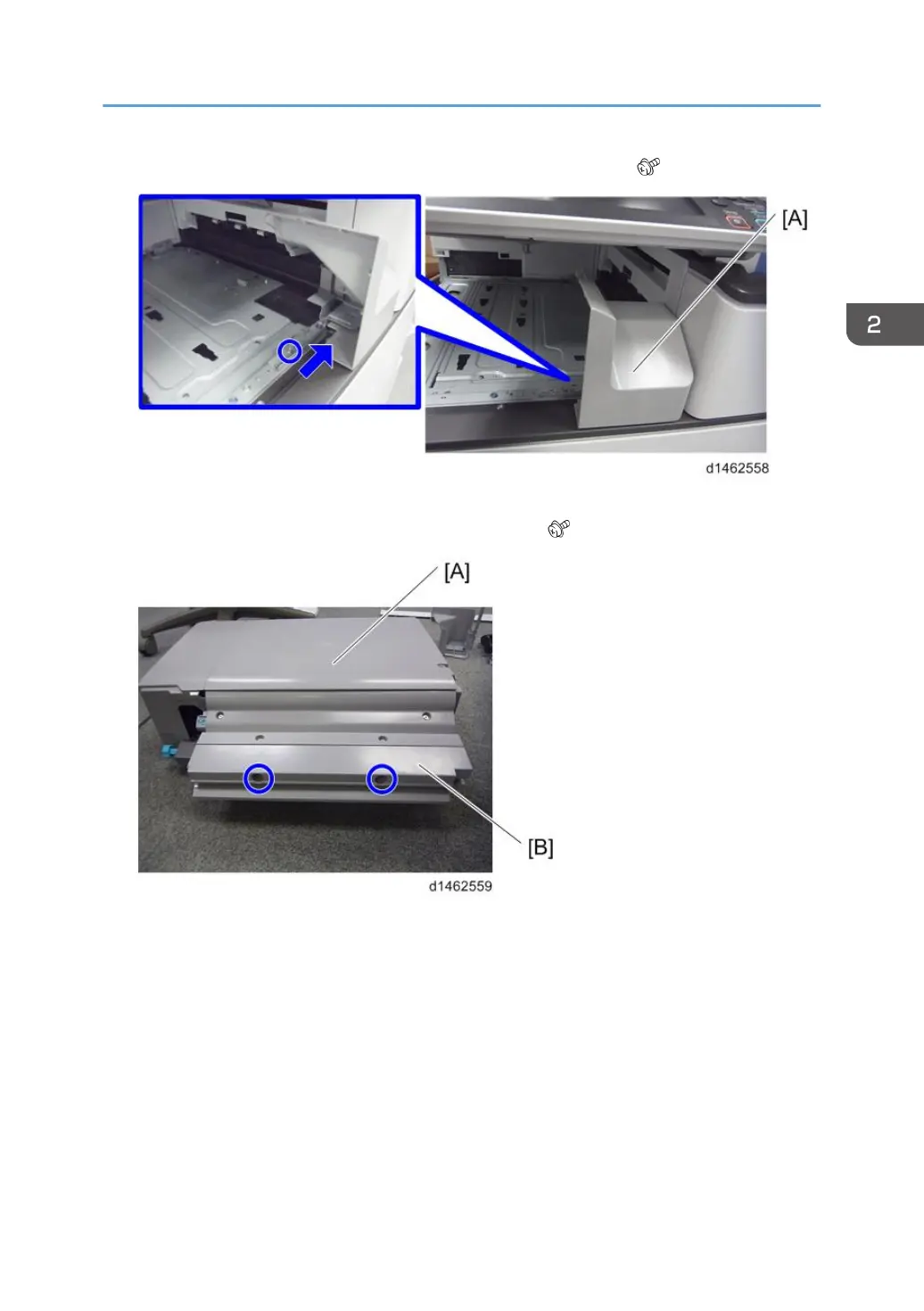

22. Slide the finisher front right cover [A] from left to right to attach it ( ×1).

23. Reattach the inverter tray.

24. Attach the entrance guide plate [B] to the finisher [A] ( ×2).

Internal Finisher SR3130 (D690)

229
