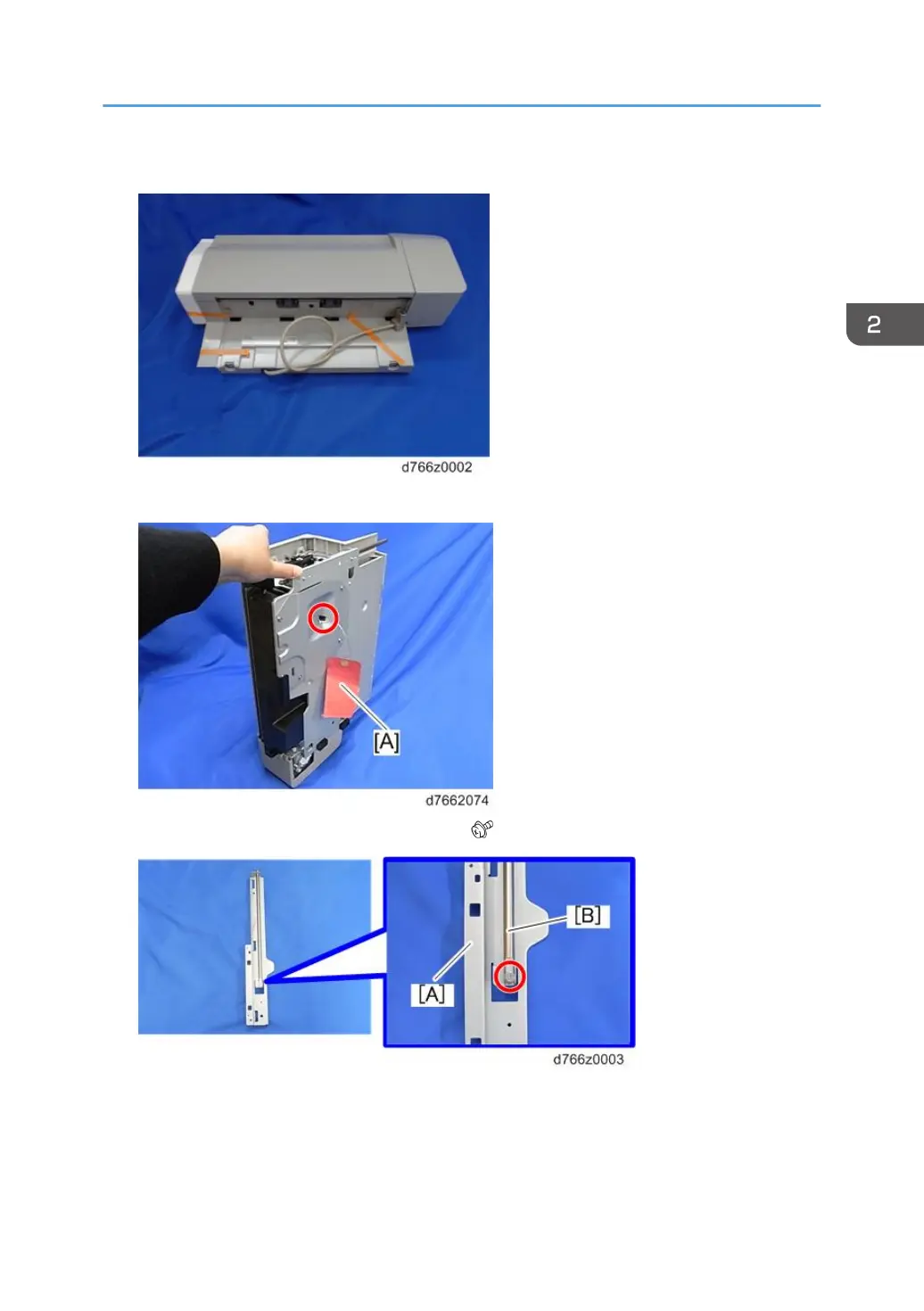

1. Remove the orange tapes and shipping retainers.

2. Remove the knob screw and red tag [A].

3. Remove the shaft [B] from the slide rail [A] ( x 1).

Internal Finisher SR3180 (D766)

243
