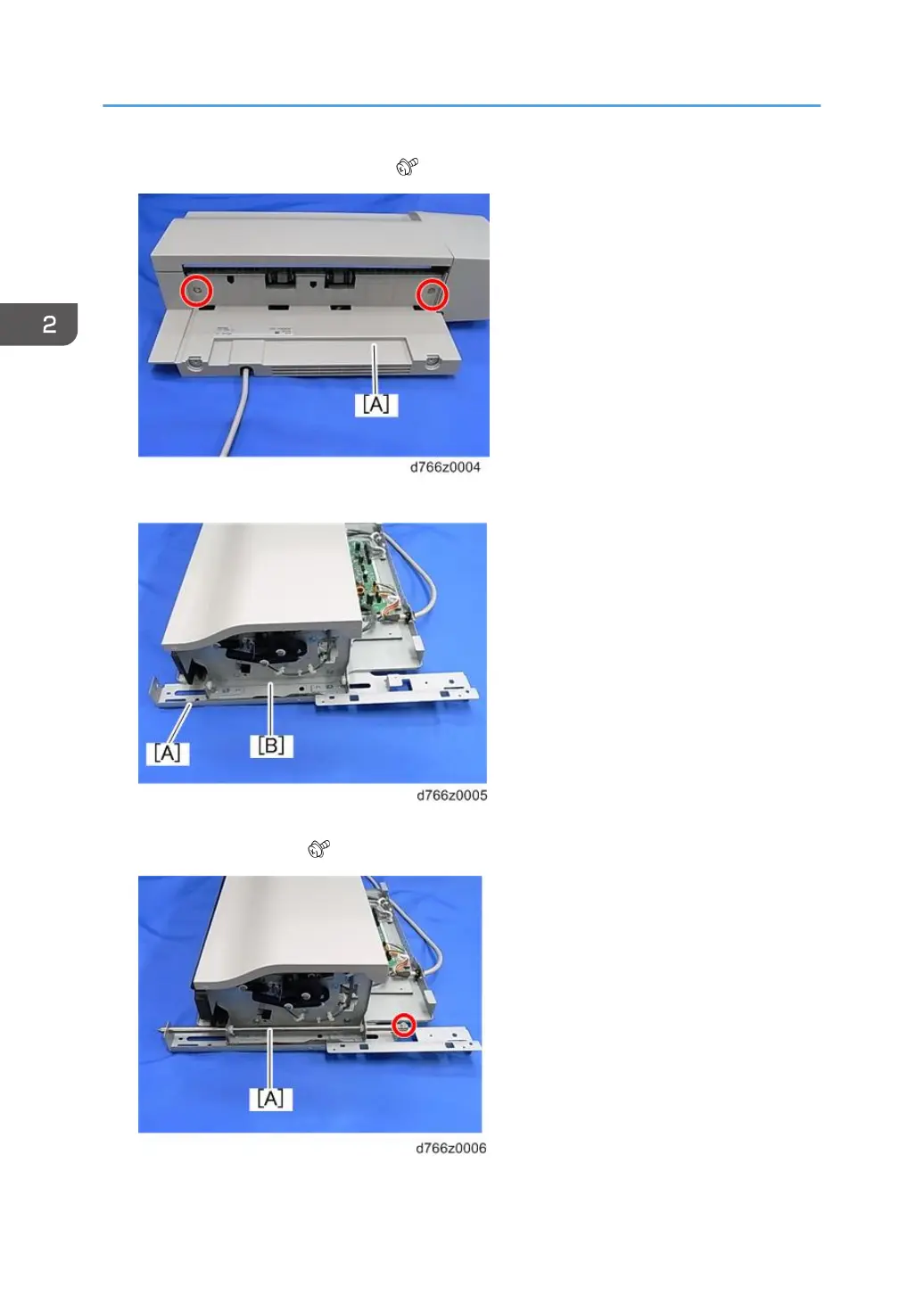

4. Remove the paper exit cover [A] ( x 2).
5. Place the slide rail [A] under the internal finisher [B].
6. Insert the shaft [A] into the holes located in the slide rail and internal finisher, and then
fasten with the screw ( x 1).
2. Installation
244
