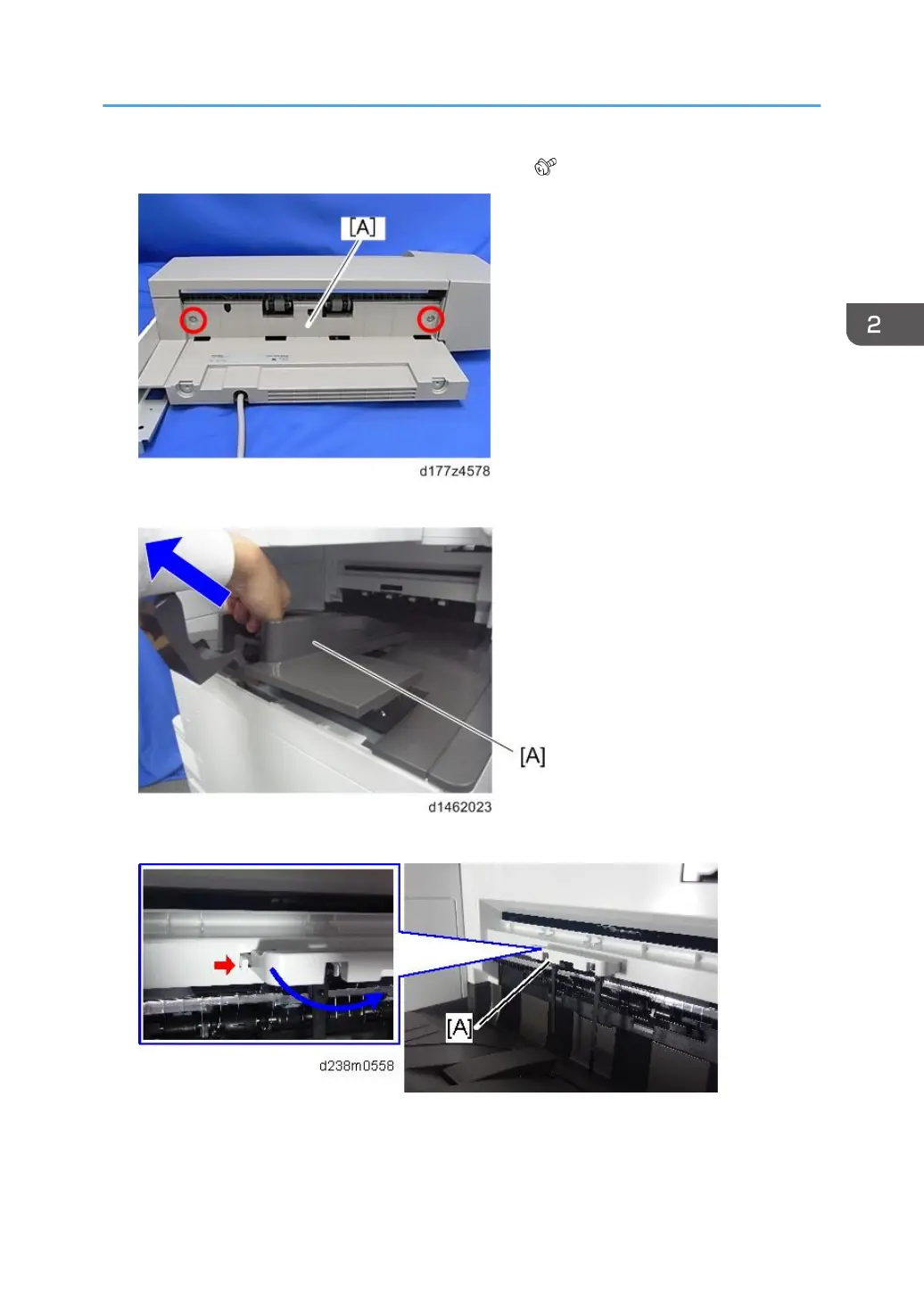

7. Attach the paper exit cover (removed in step 4) [A] ( x 2).

8. Remove the paper exit tray [A].

9. Remove the paper exit feeler [A].

Internal Finisher SR3180 (D766)

245
