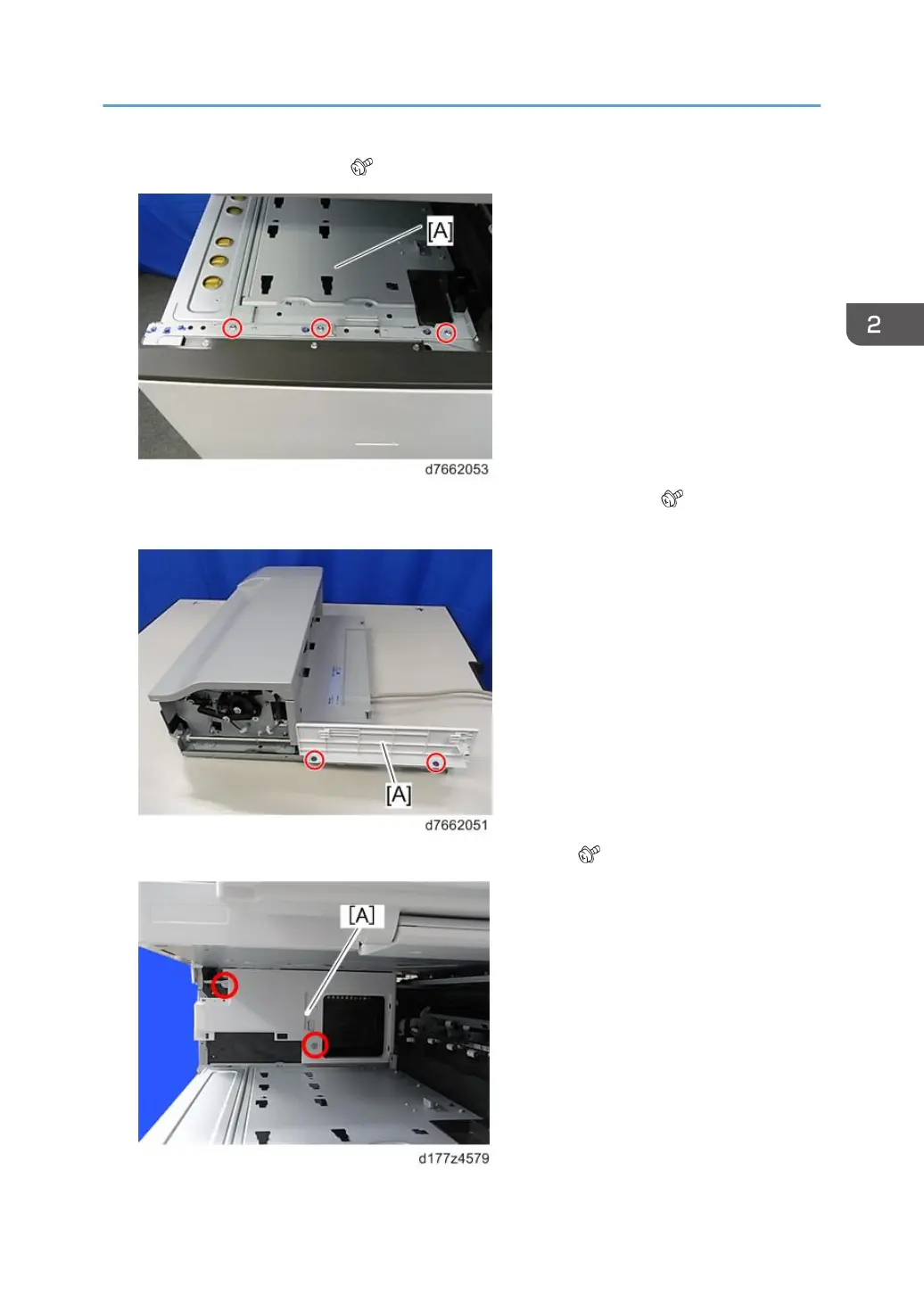

21. Install the bottom plate [A] ( x 3, Accessory No. 7).

22. Install the lower inside cover (removed in step 18) [A] in the finisher ( x 2, Accessory

No.5).

23. Reattach the upper inside cover (removed in step 19) [A] ( x 2).

Internal Finisher SR3180 (D766)

251
