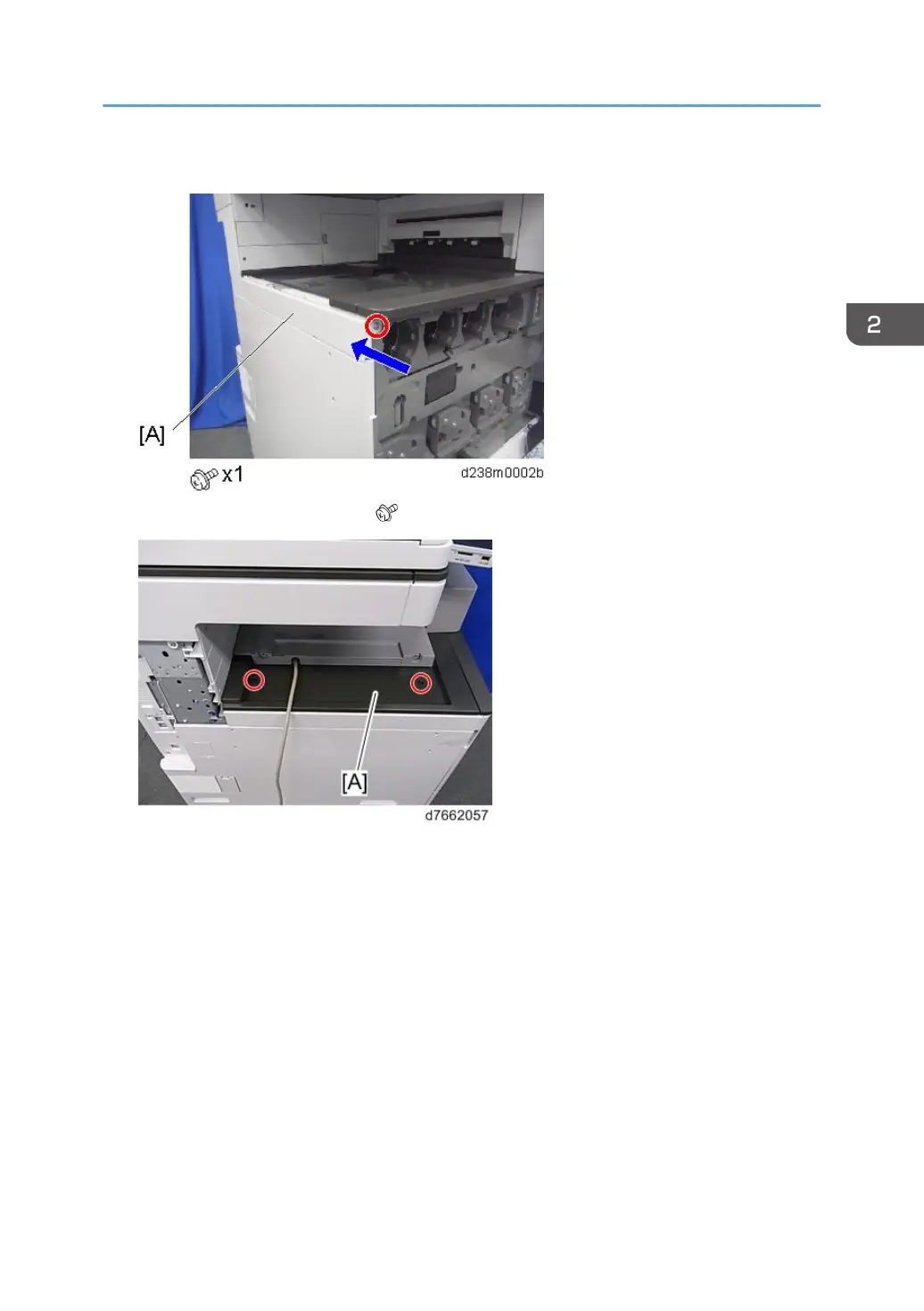

32. Reattach the left upper cover [A].

33. Attach the left lower cover [A] ( x 2, Accessory No.6).

Internal Finisher SR3180 (D766)

255
