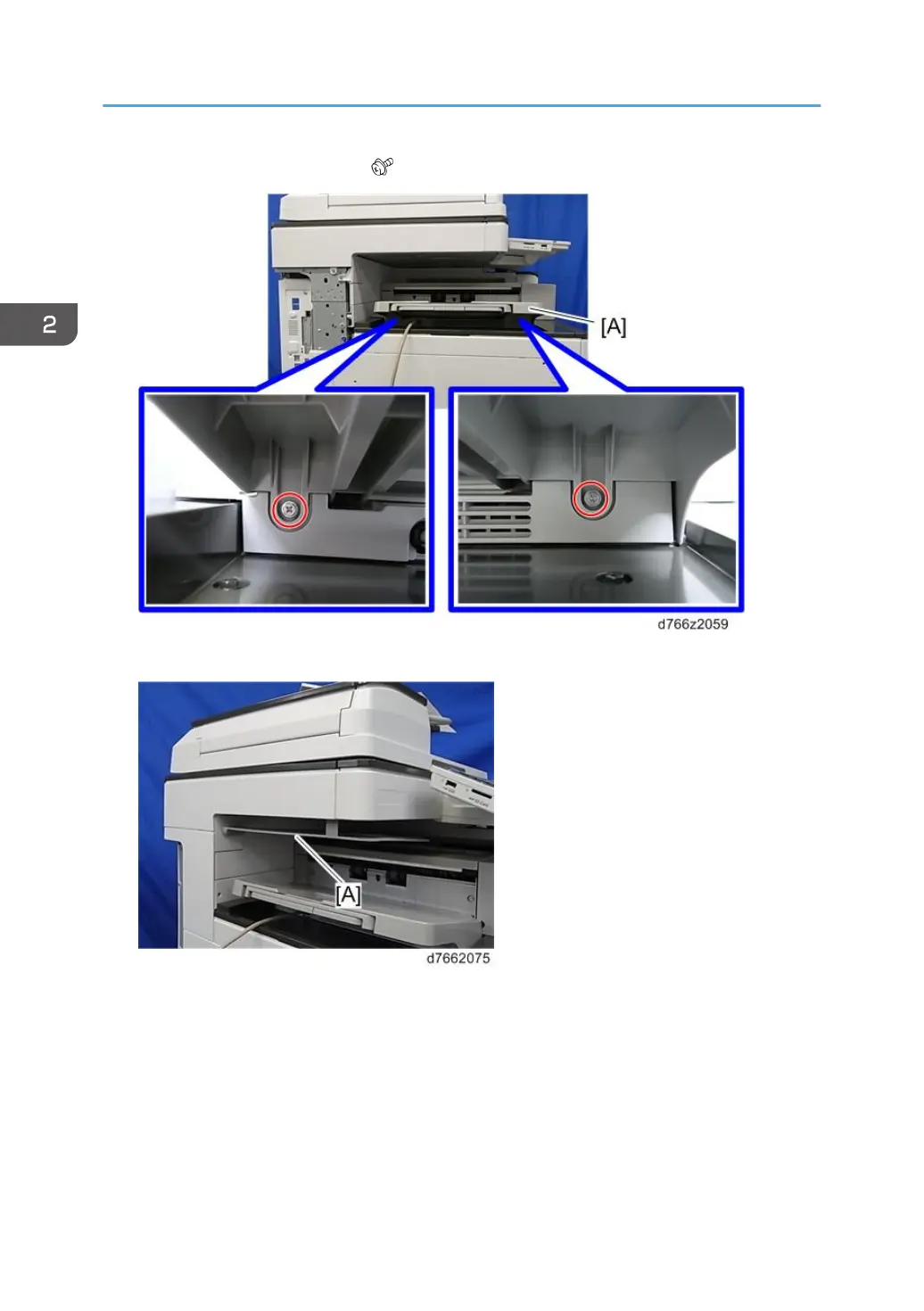

34. Attach the paper exit tray [A] ( x 2, Accessory No.4).

35. Reattach the inverter tray [A] removed in step 12.

2. Installation

256
