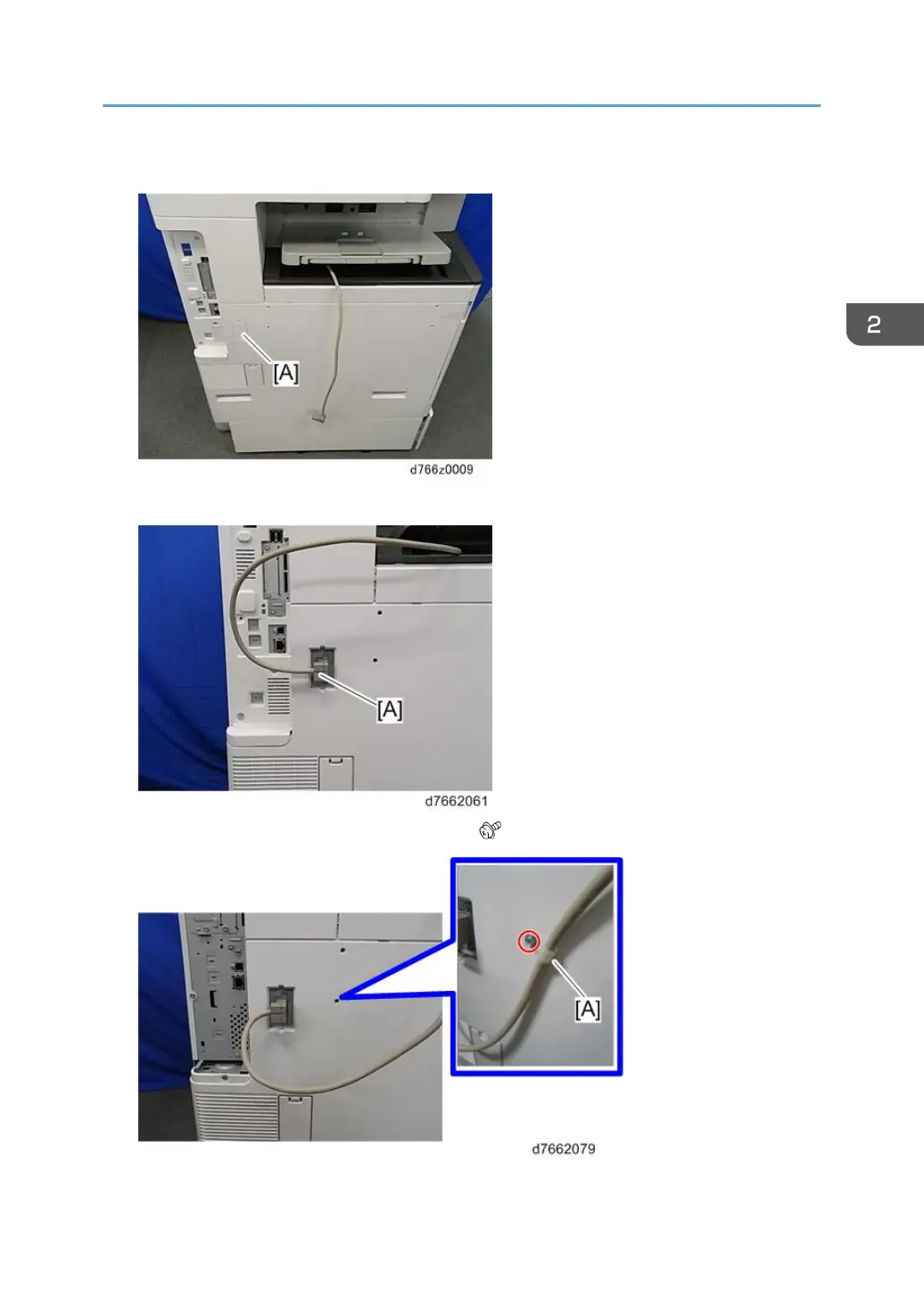

36. Remove the connector cover [A] (Release the tab).

37. Connect the interface cable [A].

38. Attach the nylon clamp [A] as shown below ( x 1, Accessory No.9).

39. Turn ON the main power.

Internal Finisher SR3180 (D766)

257
