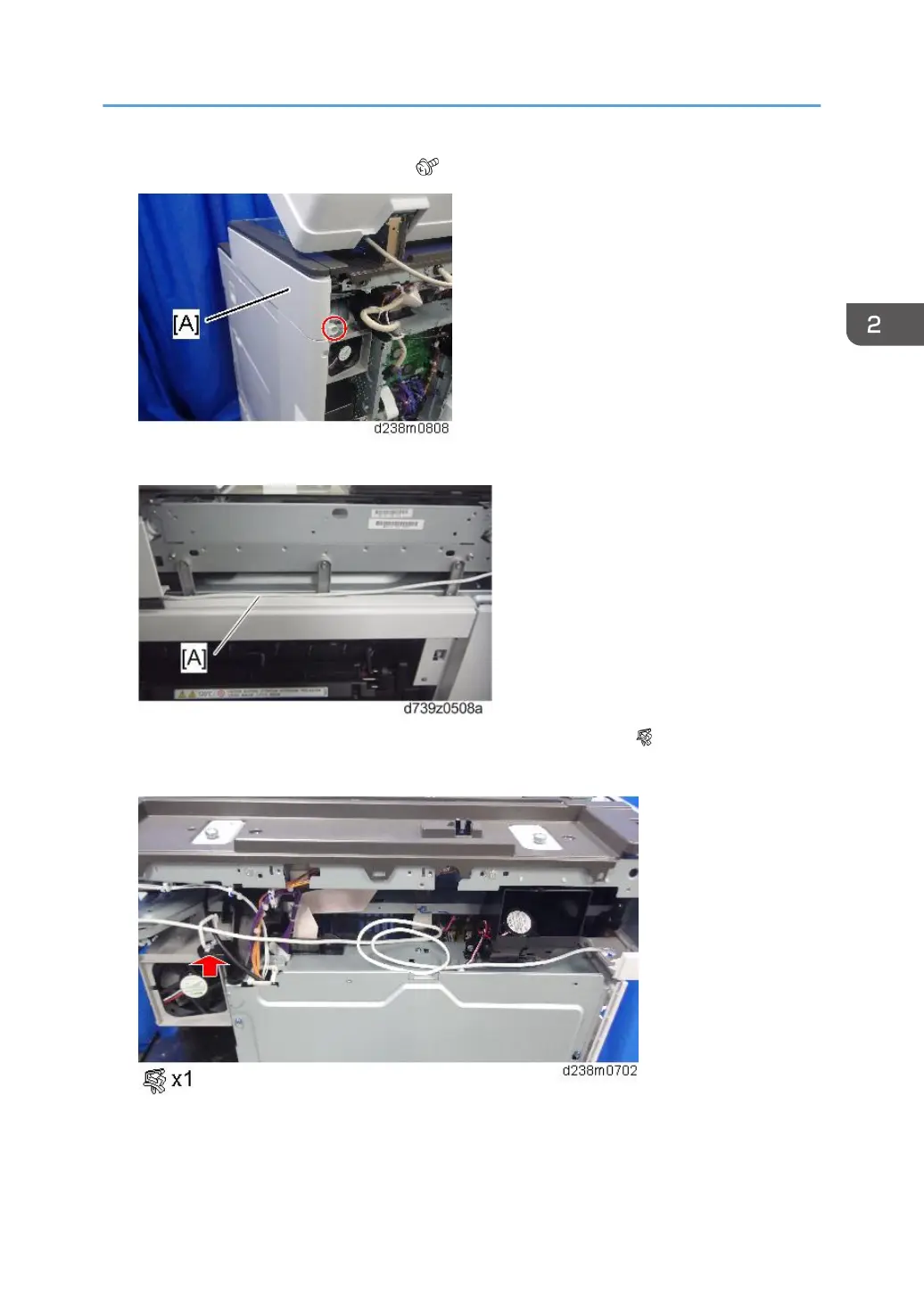

10. Remove the scanner right cover [A] ( ×1)
11. Route the keyboard cable [A] along the right side of the scanner unit as shown below.
12. Route the keyboard cable along the rear side of the scanner unit ( x1).
• Adjust the keyboard cable by making loops if the keyboard cable has too much slack.
