Ricoh MP C2504 - Page 324

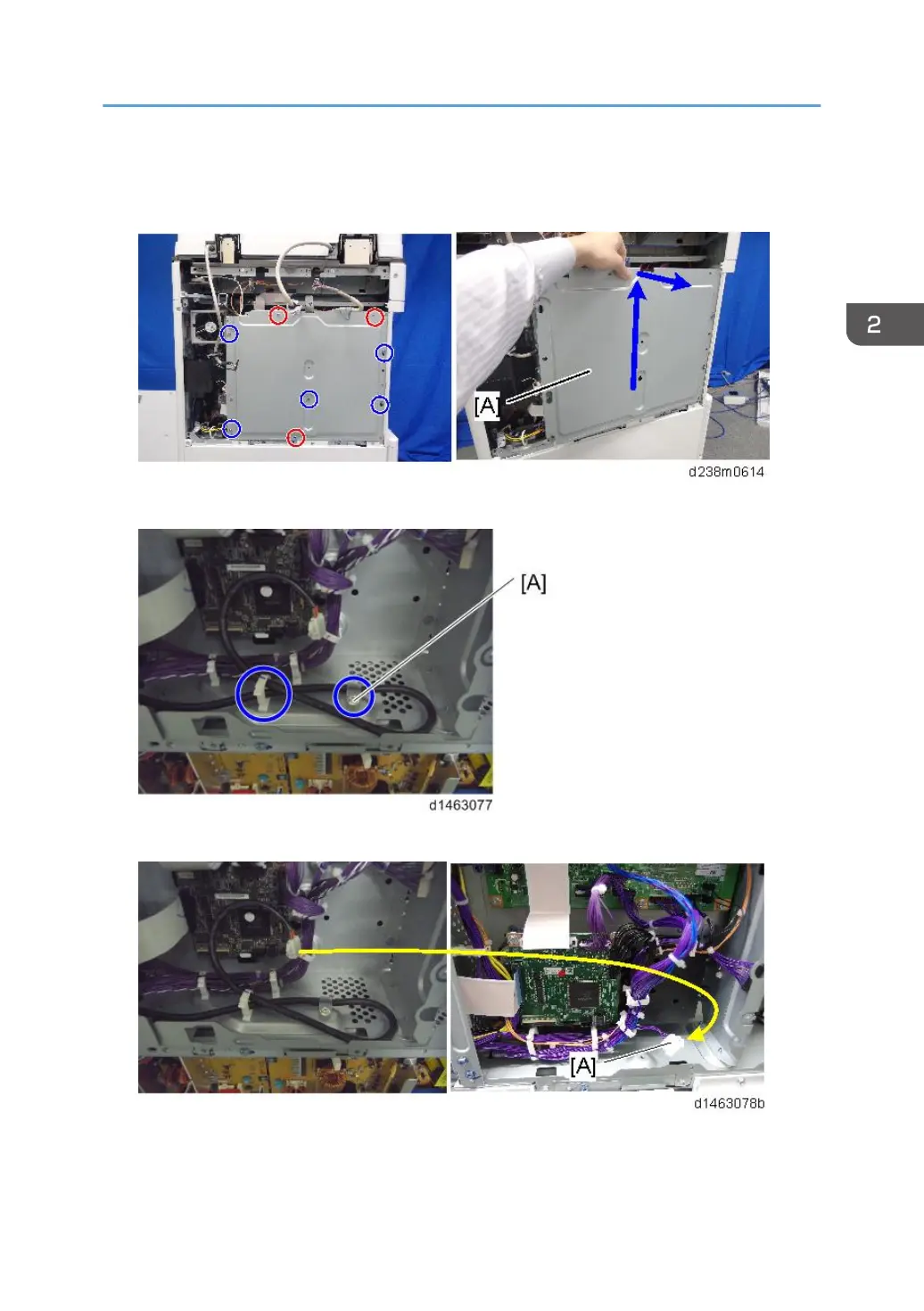

7. Remove the controller box cover [A].
Red Circle: Remove / Blue Circle: Loosen
8. Route the key counter’s cable inside the machine and fasten it using the screw hole [A].
9. Connect the key counter’s cable to the 4-pin connector [A] on the machine.
Key Counter Bracket Type M3 (D739-09)
