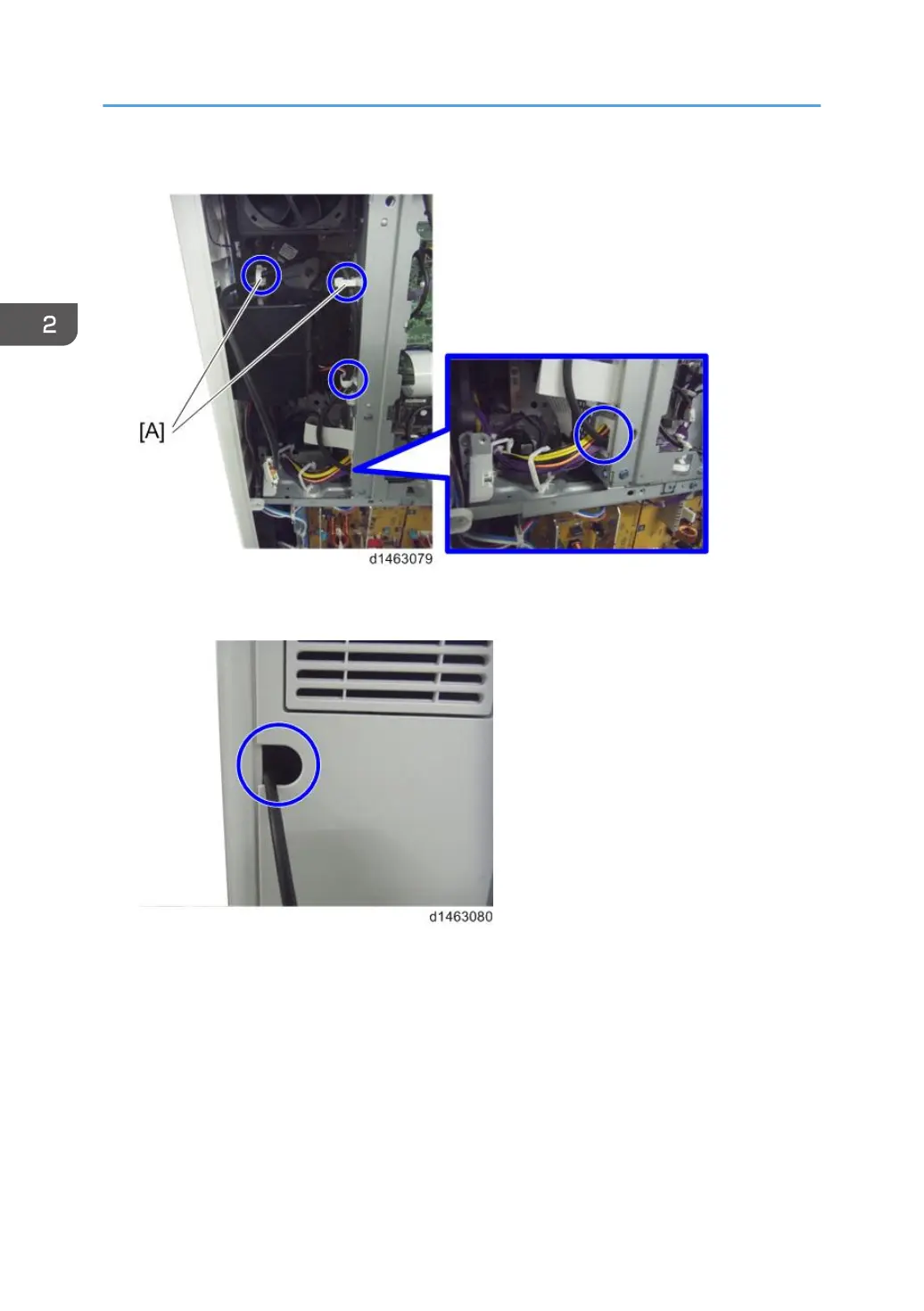

10. Attach the supplied clamp [A], and then route the cable as shown.

11. Open the slit in the rear cover to put the cable through, and then attach the rear cover

while putting the cable through.

12. Connect the key counter and cable.
