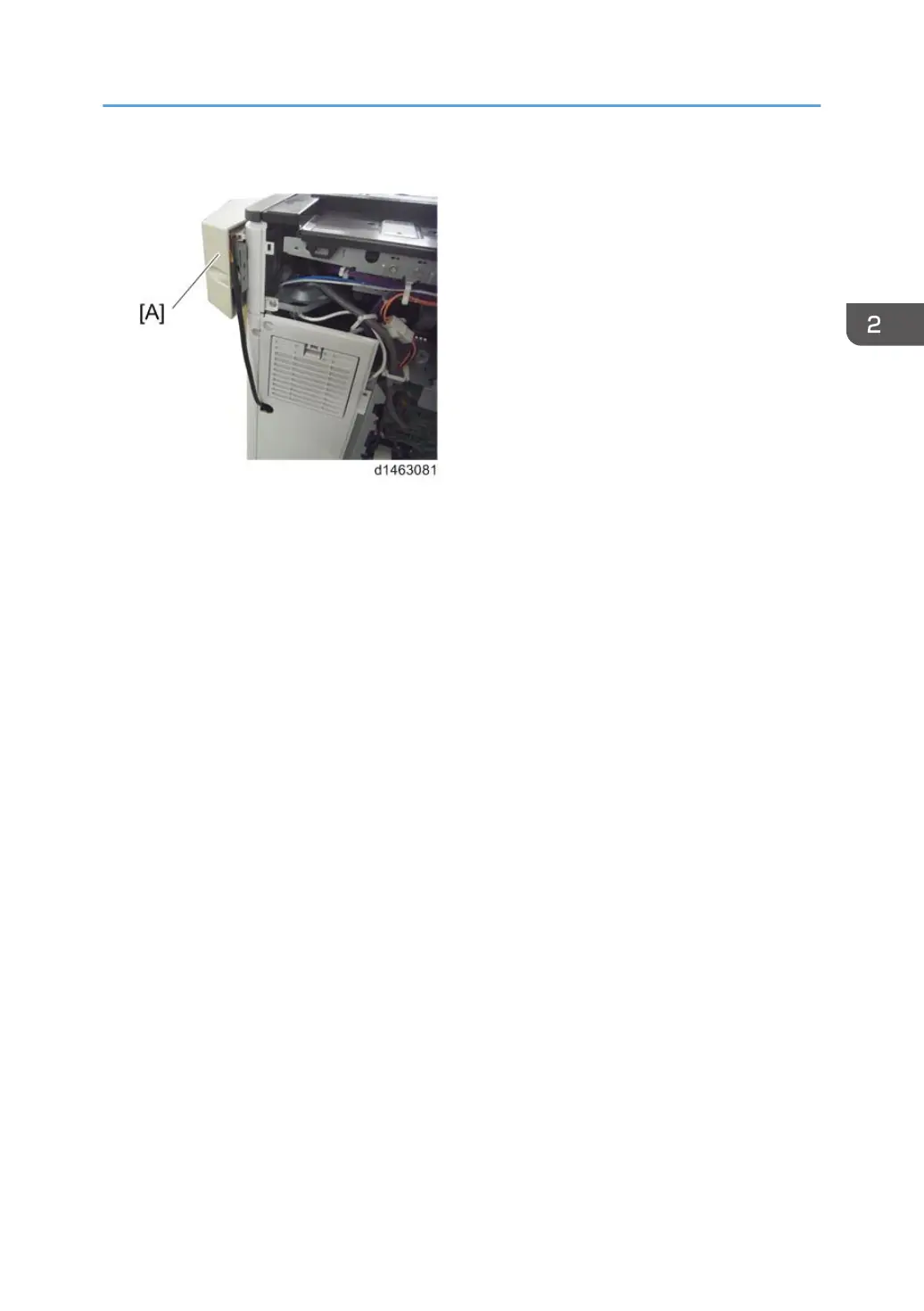

13. Attach the key counter [A] to the machine’s rear right.
14. Reinstall all the covers on the main machine.
15. Peel off double sided tape on the key counter bracket and attach the key counter to the
scanner right cover.
16. Reassemble the machine.
Key Counter Bracket Type M3 (D739-09)
317
