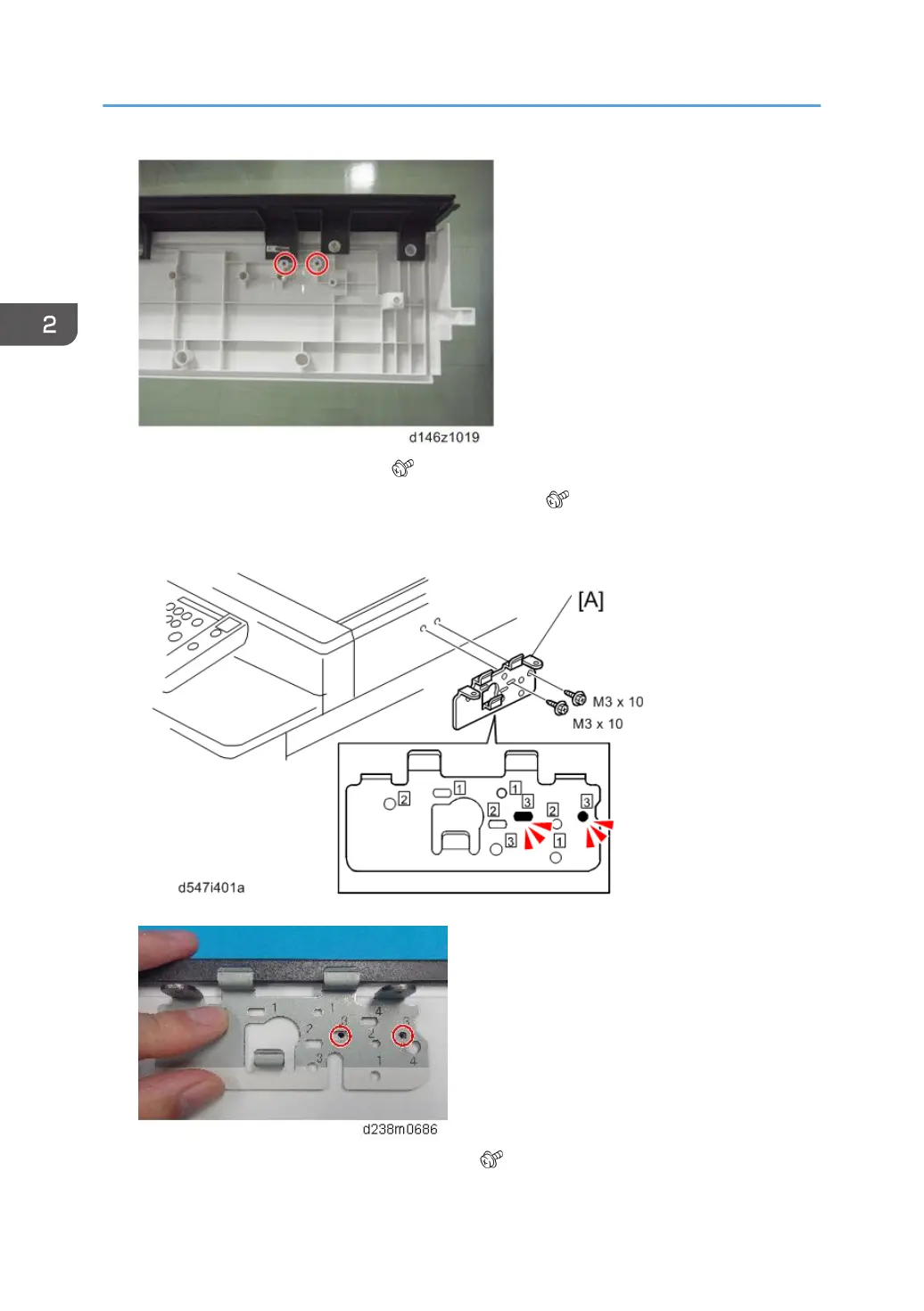

5. Reattach the scanner right cover ( x2).
6. Attach the tray bracket [A] to the scanner right cover ( x2: M3x10 tapping screw).
For this model, use the screw holes marked "3" on the table bracket.
7. Attach the lower tray [A] to the tray bracket ( x2: M3 x 8).
2. Installation
