Ricoh MP C2504 - Page 330

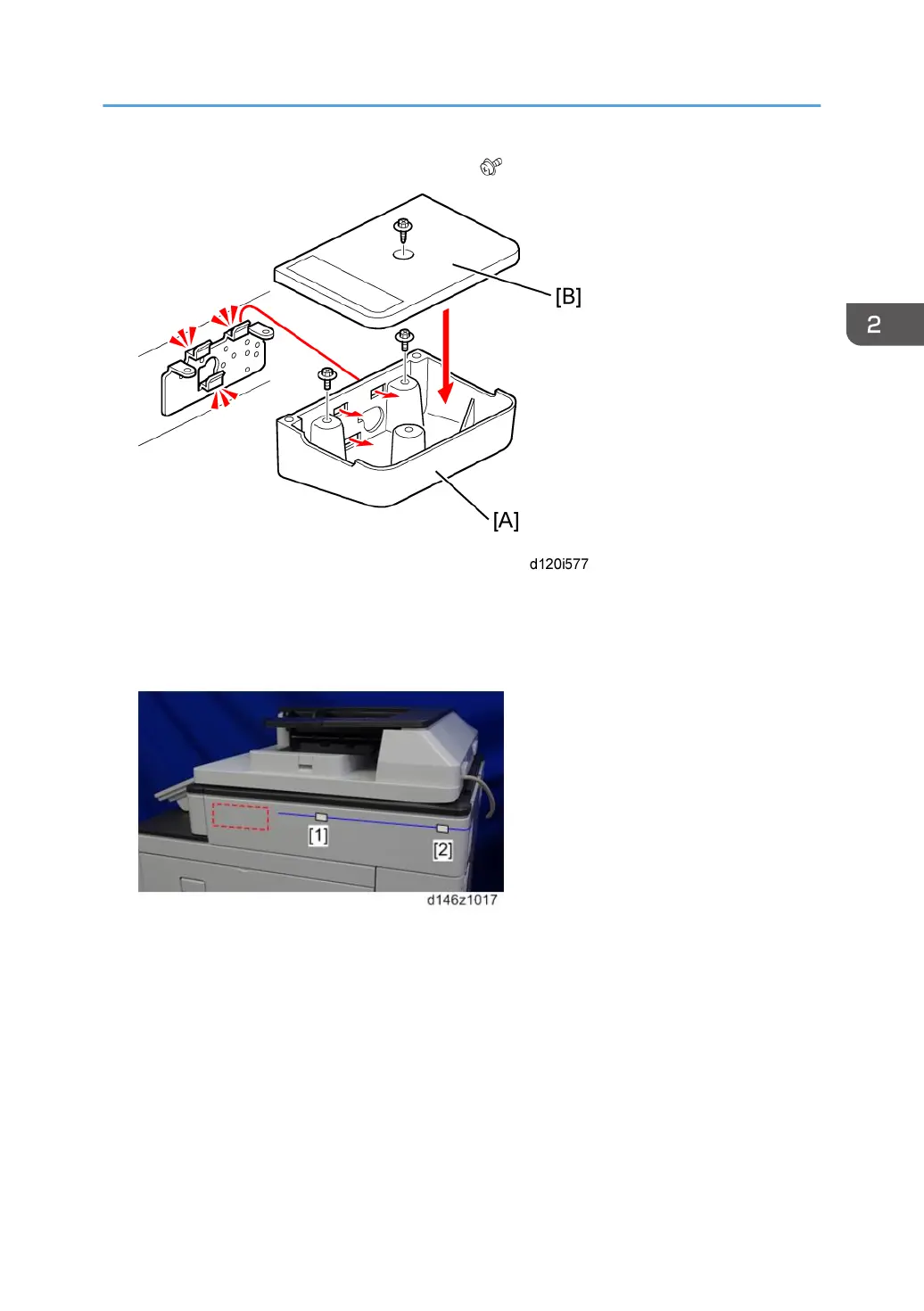

8. Attach the upper tray [B] to the tray bracket ( x1: M3 x 10).
9. Attach the clamps ([1] to [5]) and route the harness around the machine as shown.
The USB cable is not supplied. Use a commercially available USB cable.
Scanner Right Cover
Card Reader Bracket Type 3352 (D593-61)
321
