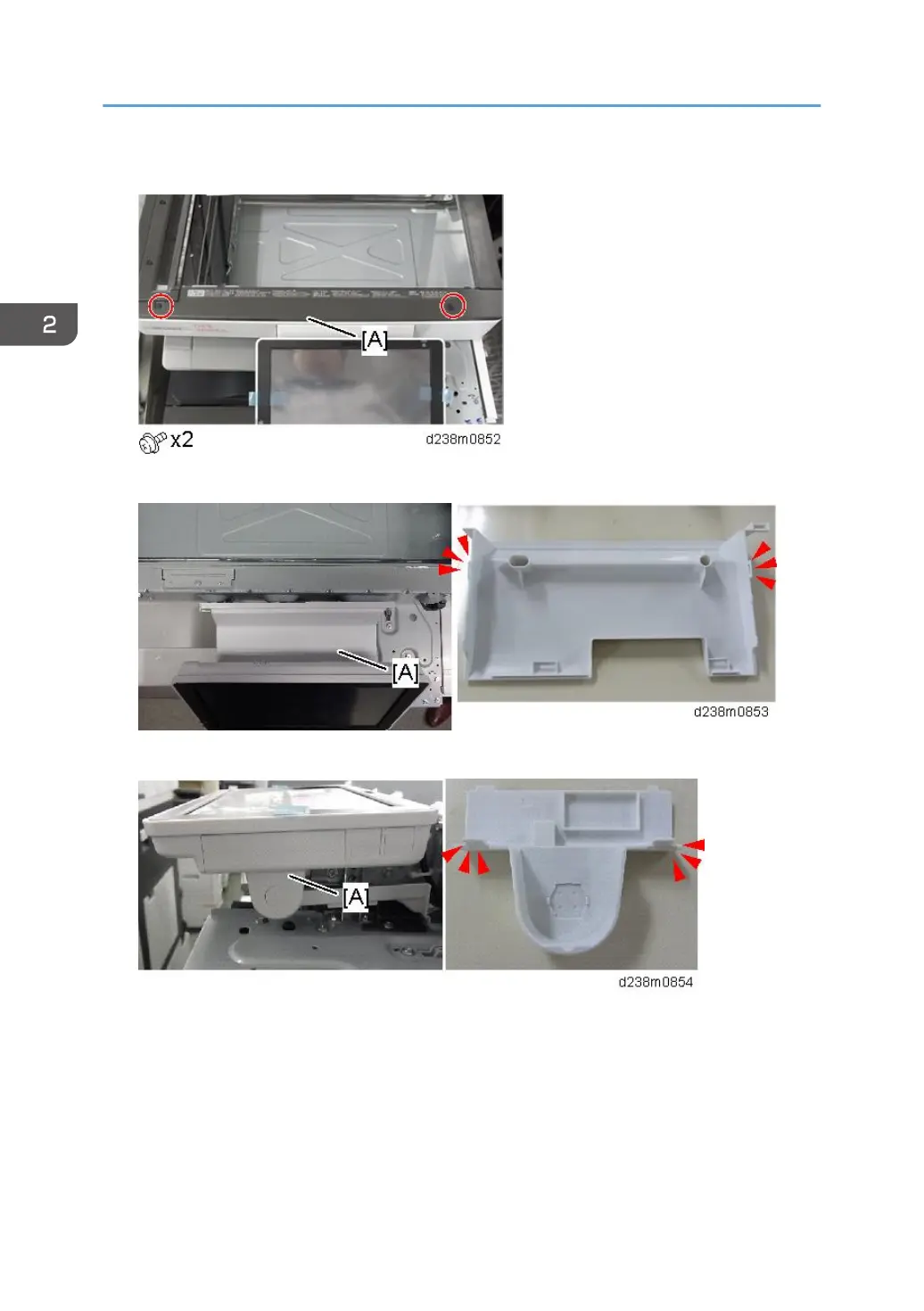

5. Remove the scanner front cover [A].

6. Remove the operation panel upper cover [A].

7. Remove the operation panel right cover [A].

2. Installation

326
