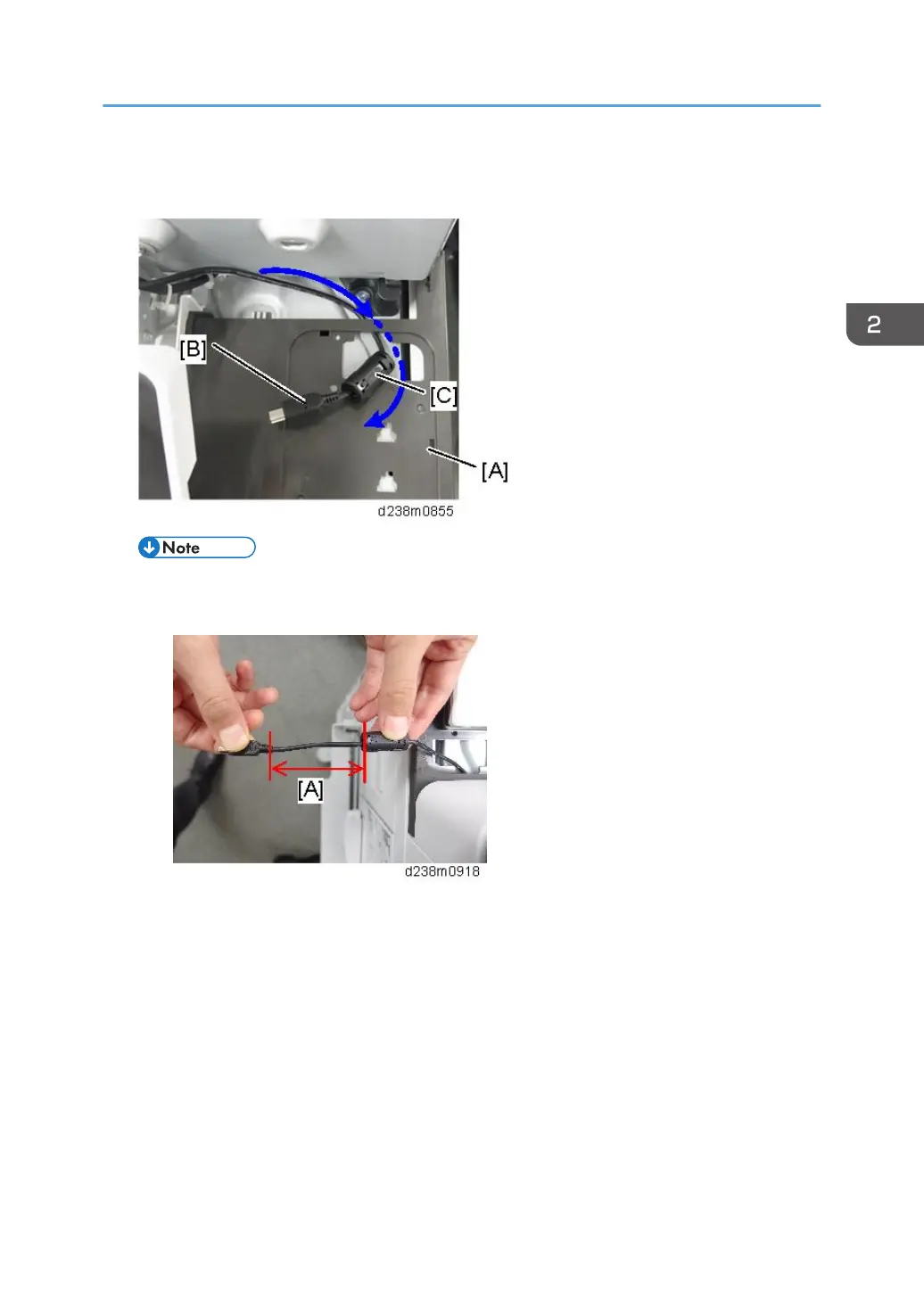

8. Thread the USB cable [B] through the notch in the corner cover [A] and attach the ferrite
core [C].
• Attach the ferrite core 6 cm [A] away from the end of the cable.
• By doing so, it becomes easier to put the ferrite core inside the reader cover in step 12.
9. Reattach the front upper cover to the machine.
NFC Card Reader Type M19 (D3BS-21)
327
