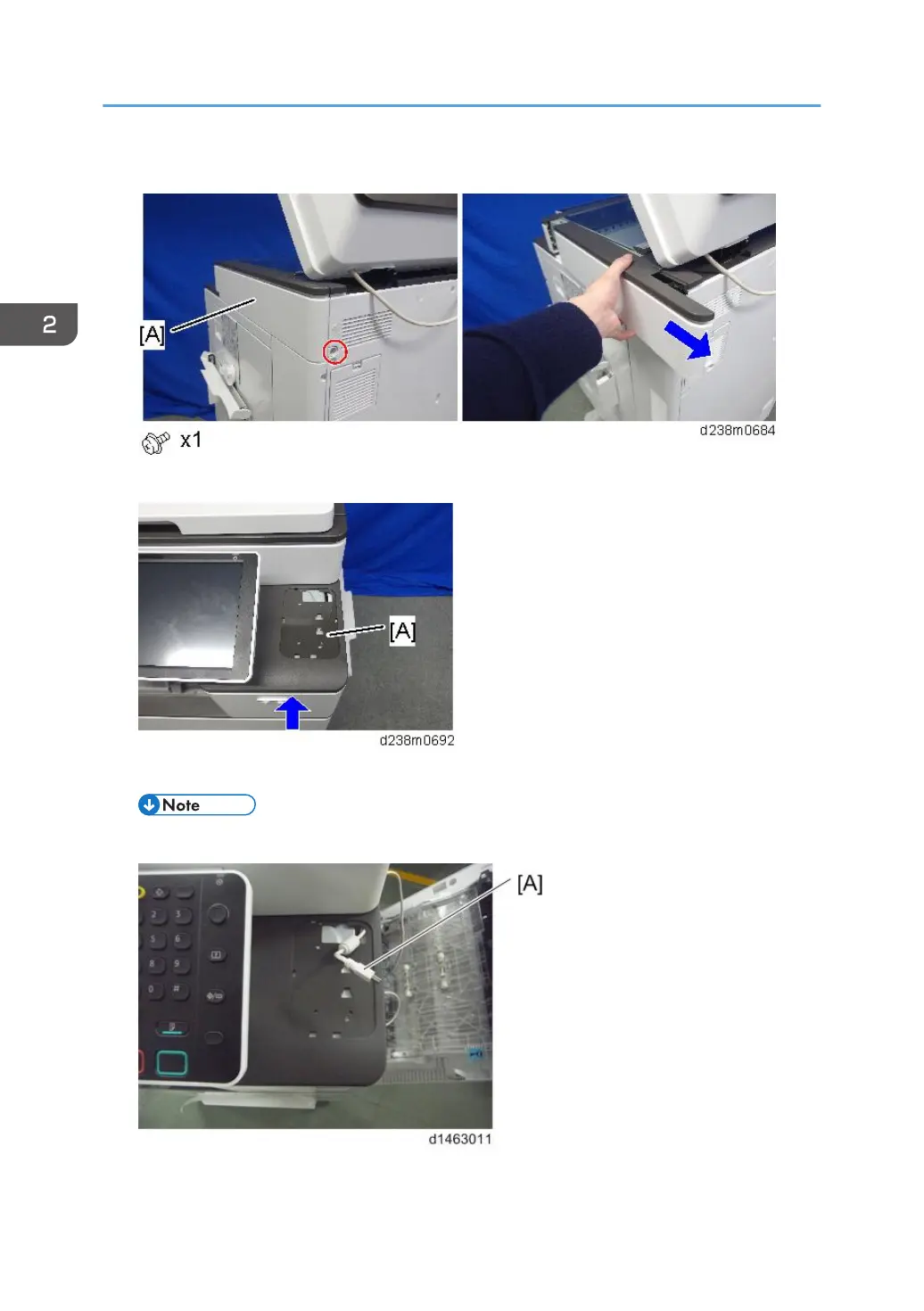

5. Remove the scanner right cover [A].

6. Reattach the front upper cover with corner cover [A] to the main machine.

7. Pass the USB cable [A] through the hole.

• This cable is not included in this unit. The user may need to provide it.

2. Installation

334
