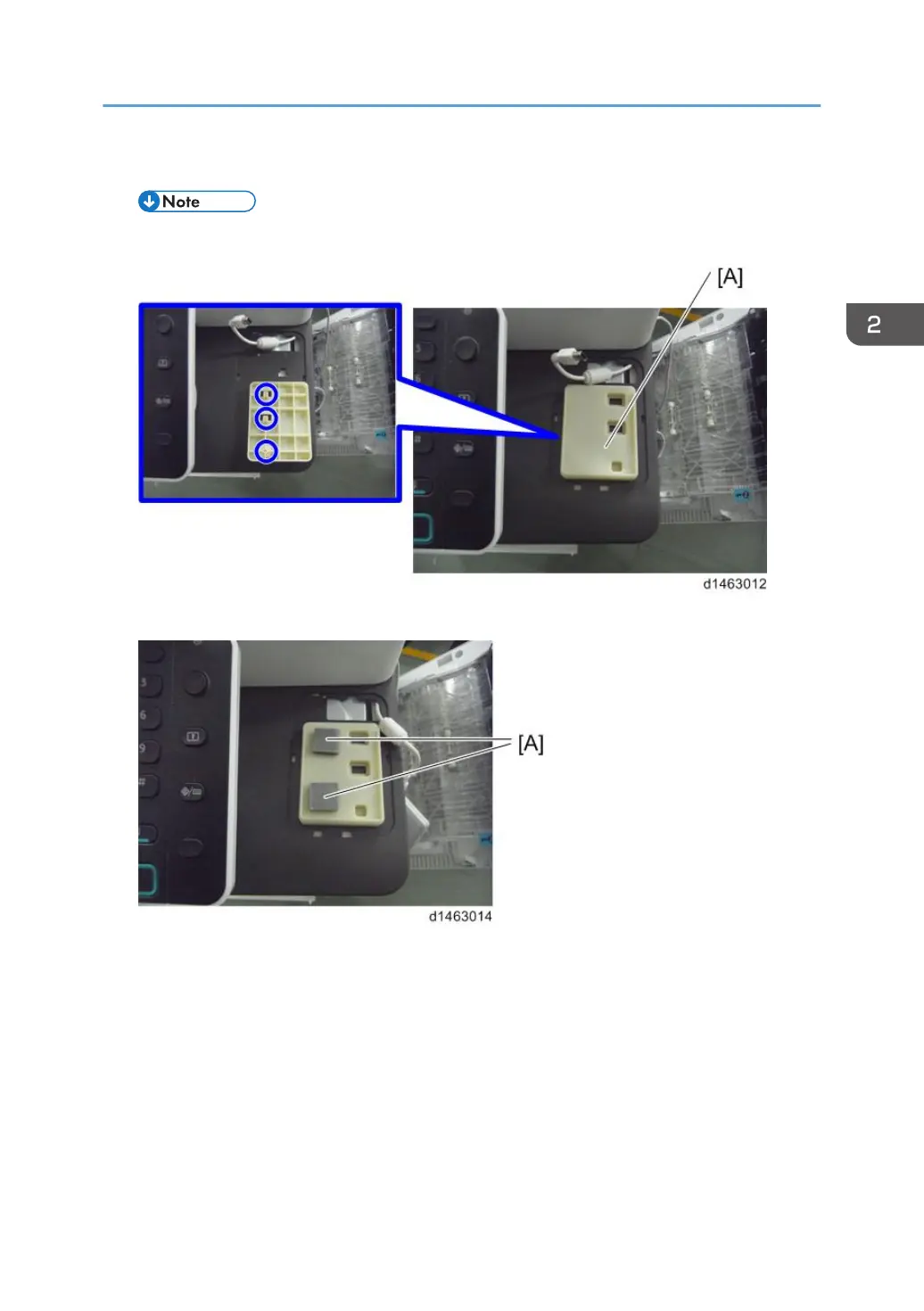

8. Attach the table [A].

• There are three ribs on the back side of the table.

9. Attach the sponges [A] with double-sided tape.

Smart Card Reader Built-in Unit Type M19 (D3BS-22)

335
