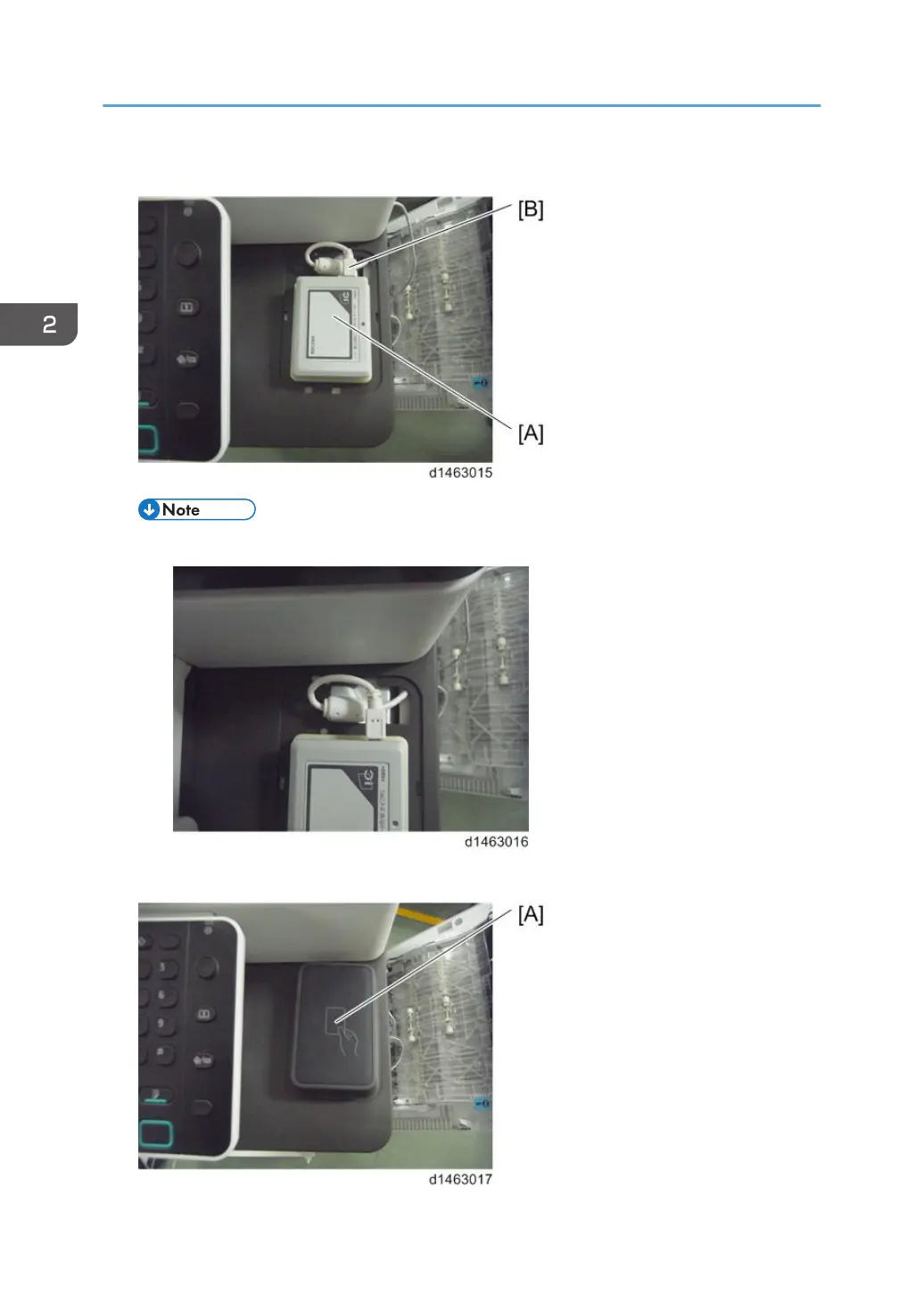

10. Connect the cable [B] to the IC reader [A] and attach the reader to the table.

• The USB cable should be turned as the following photo shows.

11. Attach the IC card reader cover [A].

2. Installation

336
