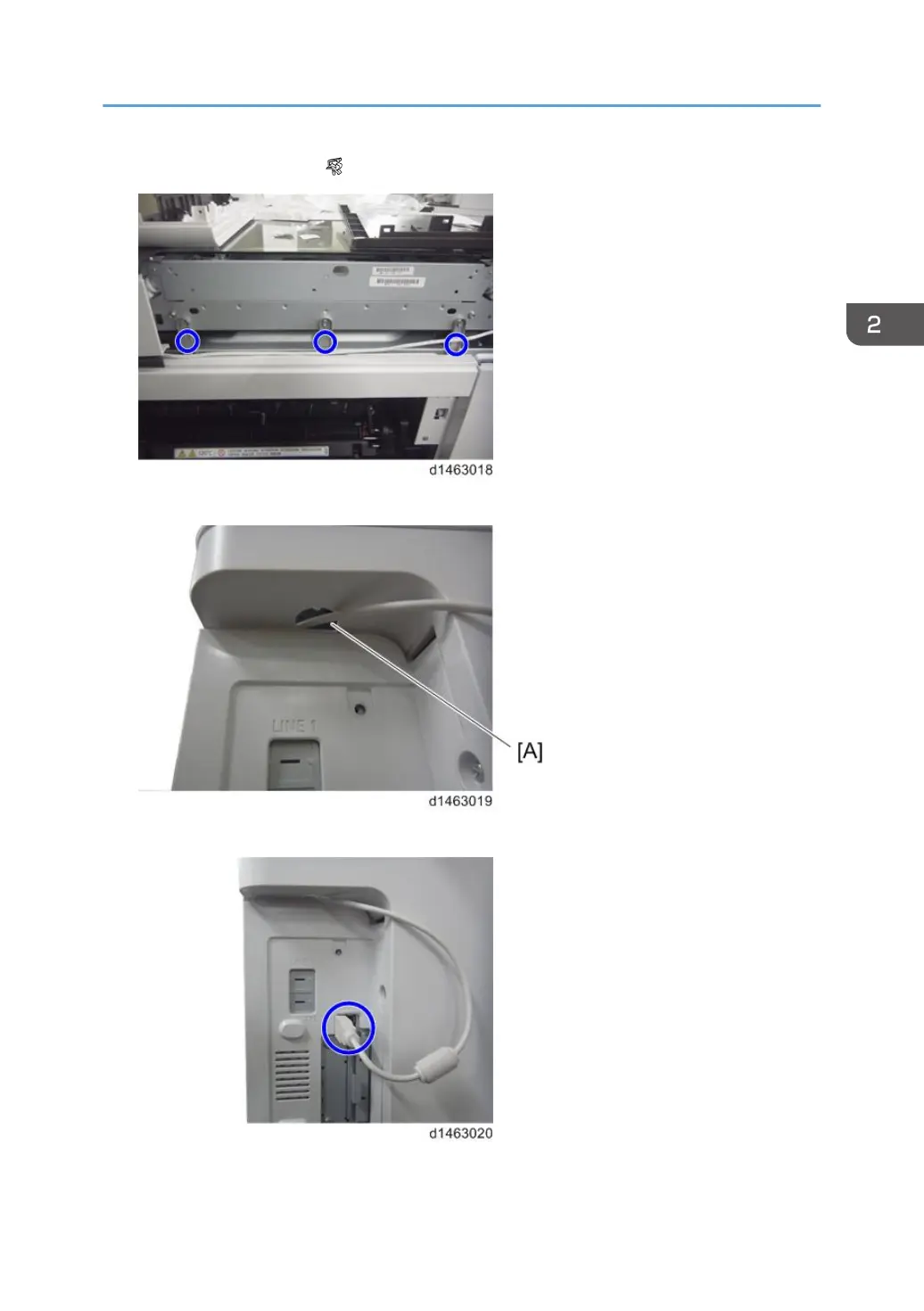

12. Attach the three clamps ( x3).

13. Remove the cover to make the hole [A] to pass the cable through.

14. Connect the USB connector to the USB interface of the controller.

Smart Card Reader Built-in Unit Type M19 (D3BS-22)

337
