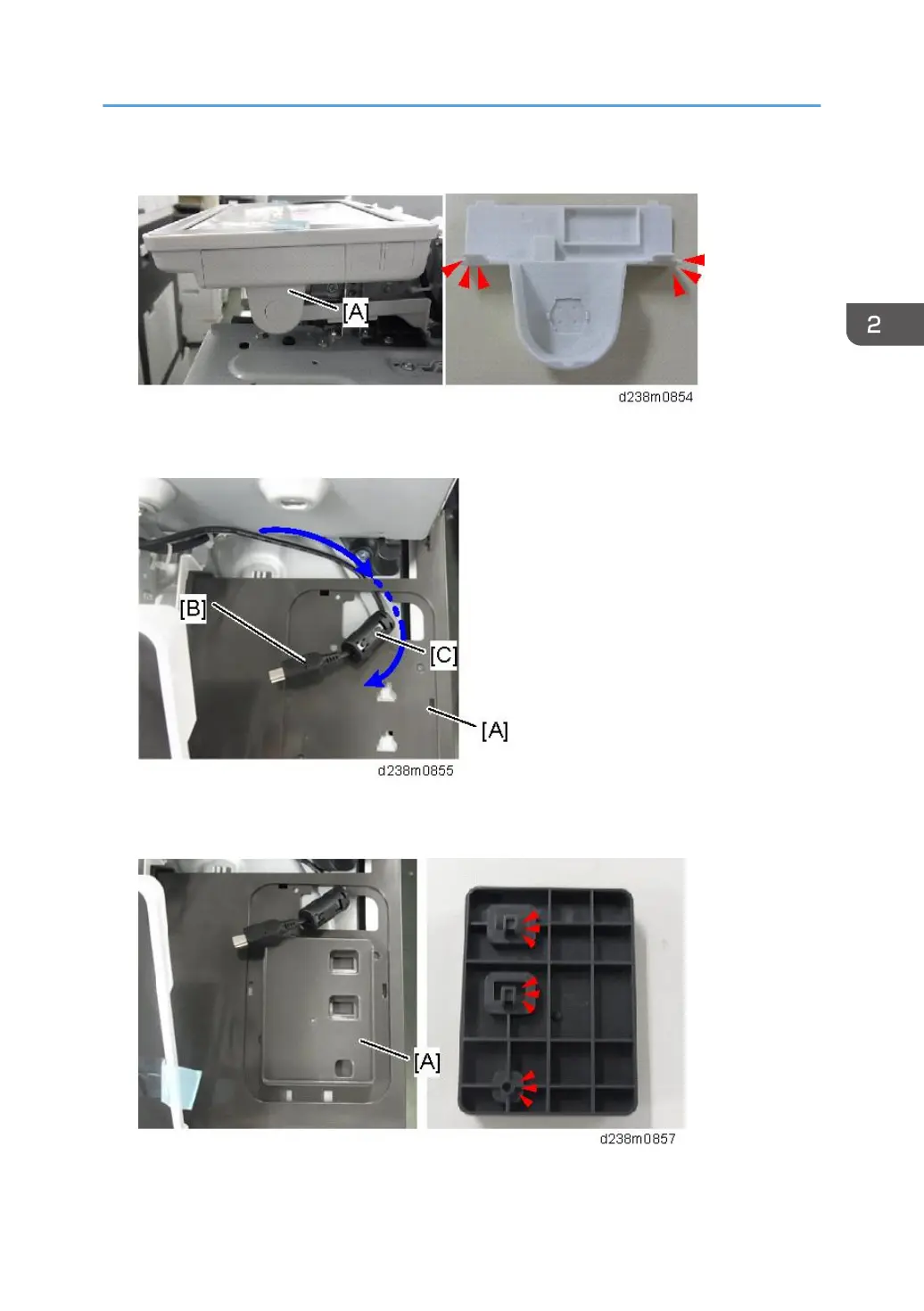

7. Remove the operation panel right cover [A].
8. Thread the USB cable [B] through the notch in the front upper cover [A] and attach the
ferrite core [C].
9. Reattach the front upper cover to the main machine.
10. Attach the reader spacer [A].
Smart Card Reader Built-in Unit Type M19 (D3BS-22)
341
