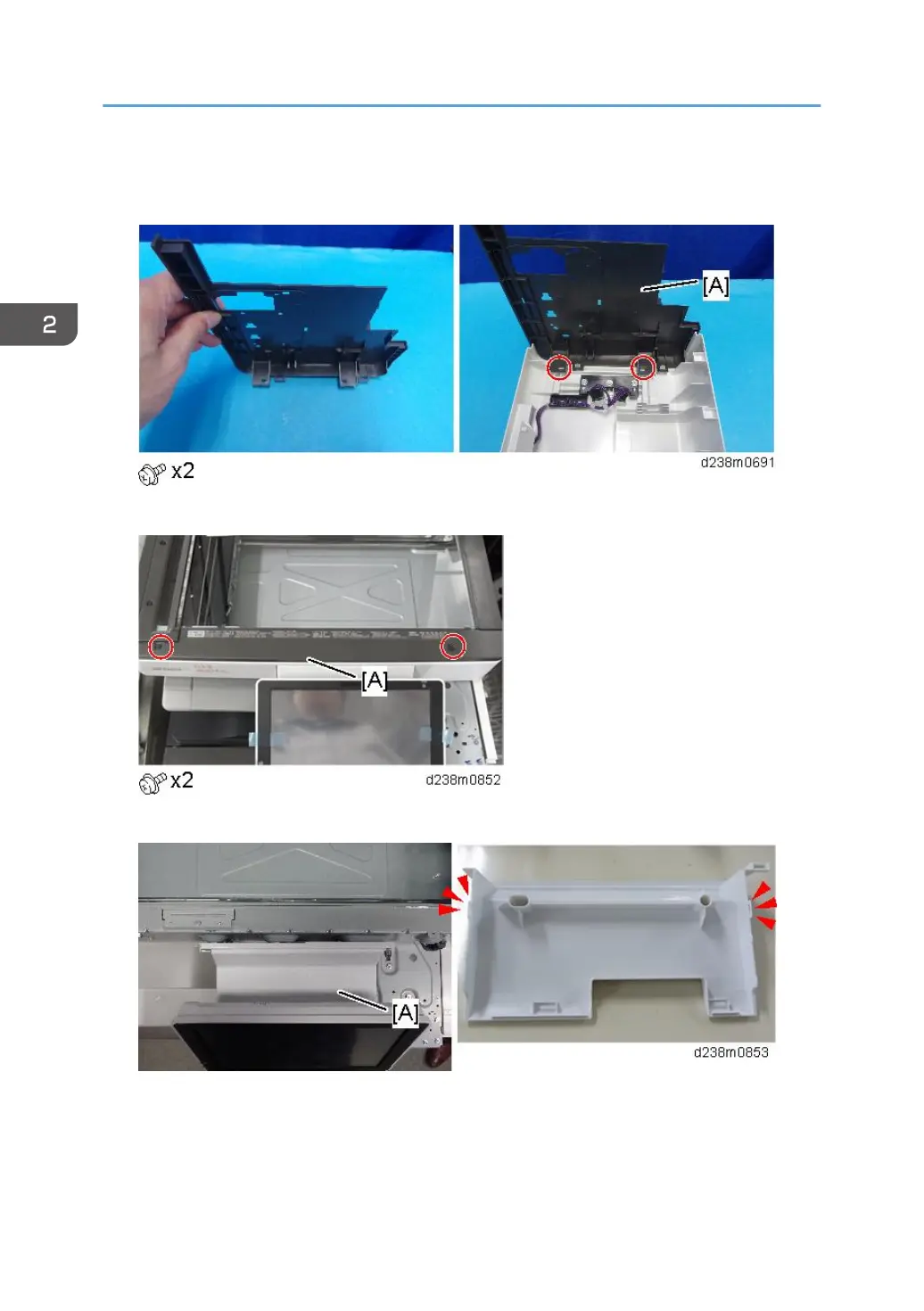

4. Attach the corner cover [A] provided with this option.

Use the screws removed in the previous step.

5. Remove the scanner front cover [A].

6. Remove the operation panel upper cover [A].

2. Installation

340
