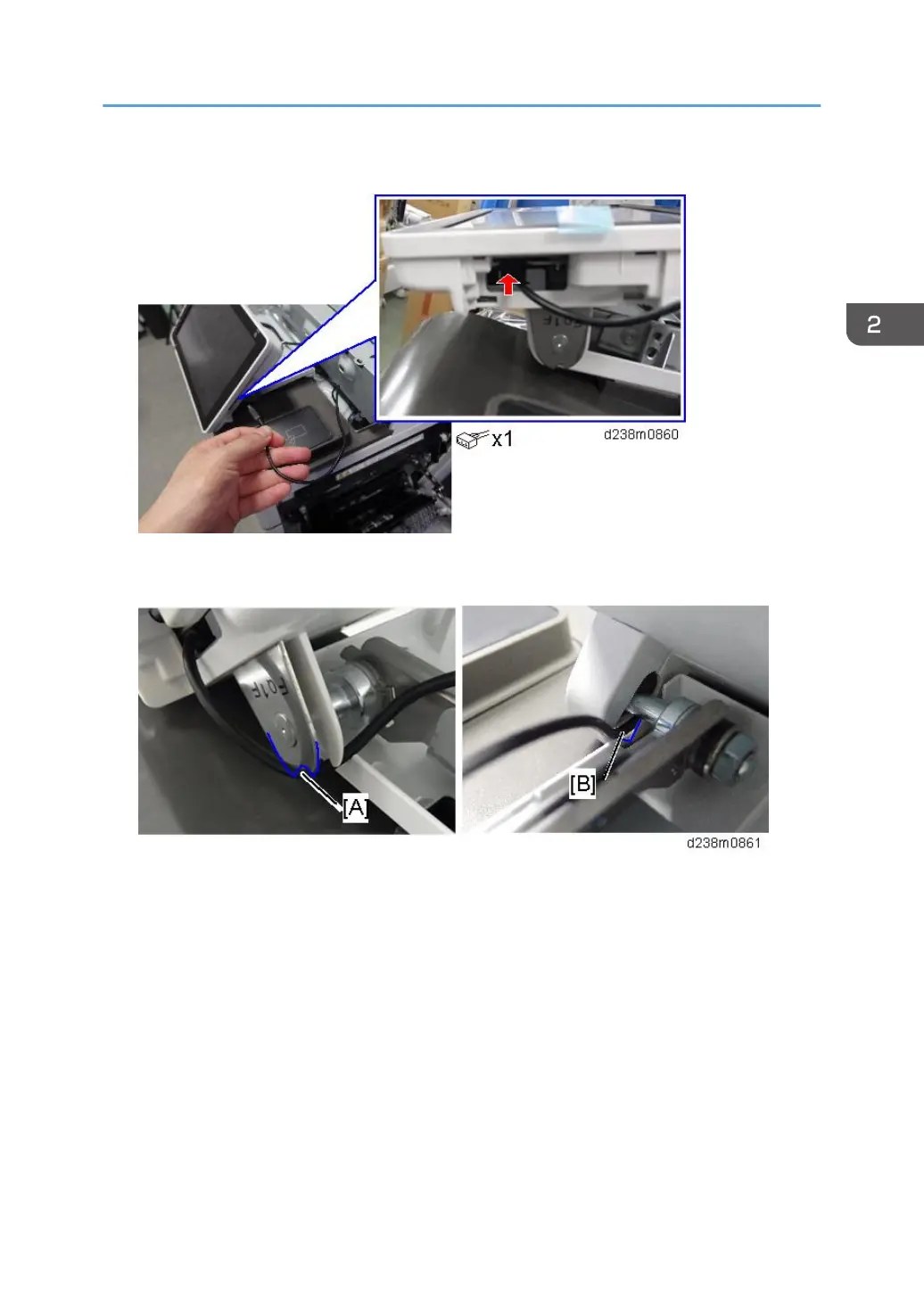

14. Connect the USB cable to the main machine’s operation panel connector.
15. Thread the USB cable through the U-shaped groove [A] at the hinge of the operation
panel and notch [B] in the cover under the cover.
16. Apply the clamp to fasten the USB cable to the main machine.
Make sure that the cable is not loose between the connector and hinge [A] and the hinge and
clamp [B].
Smart Card Reader Built-in Unit Type M19 (D3BS-22)
