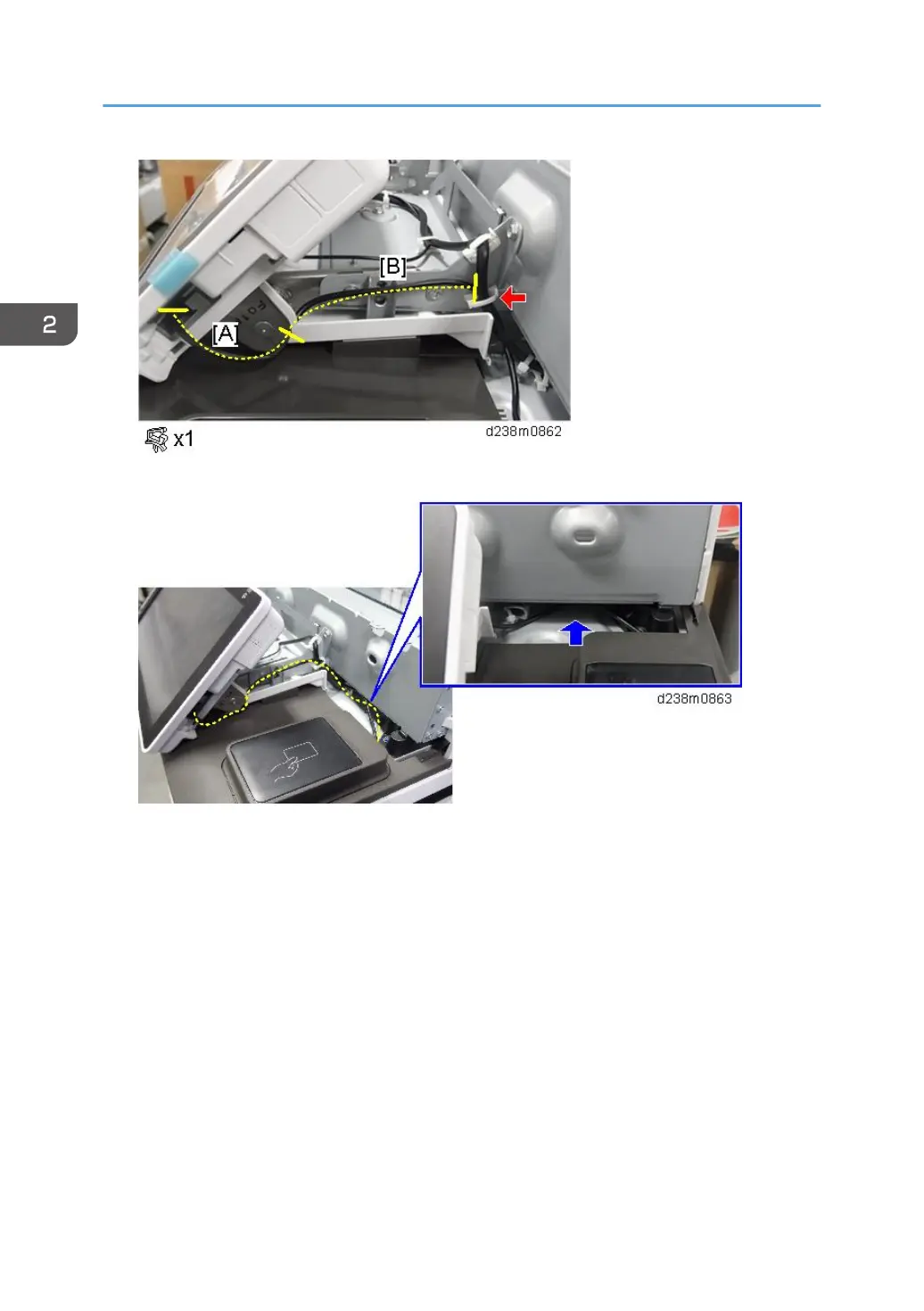

17. Tuck in the excess length portion of the USB cable in the space under the scanner.

18. Reattach the removed covers.

2. Installation

344
