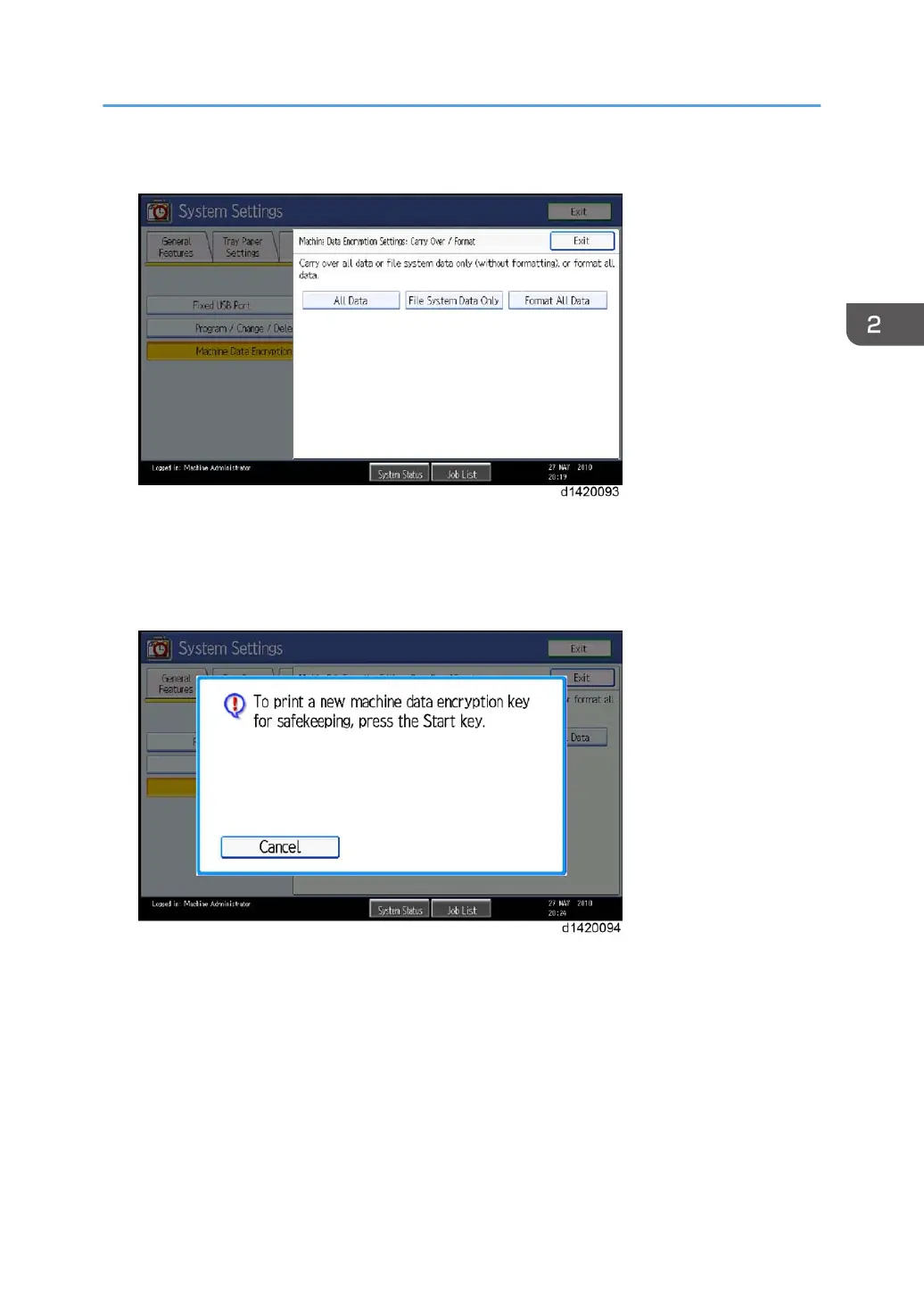

11. Select the backup method.

If you have selected [Save to SD Card], load an SD card into the media slot on the side of the

control panel and press [OK] to back up the machine's data encryption key.

If you have selected [Print on Paper], press the [Start] key. Print out the machine's data encryption

key.

12. Press [OK].

Security Settings

381
