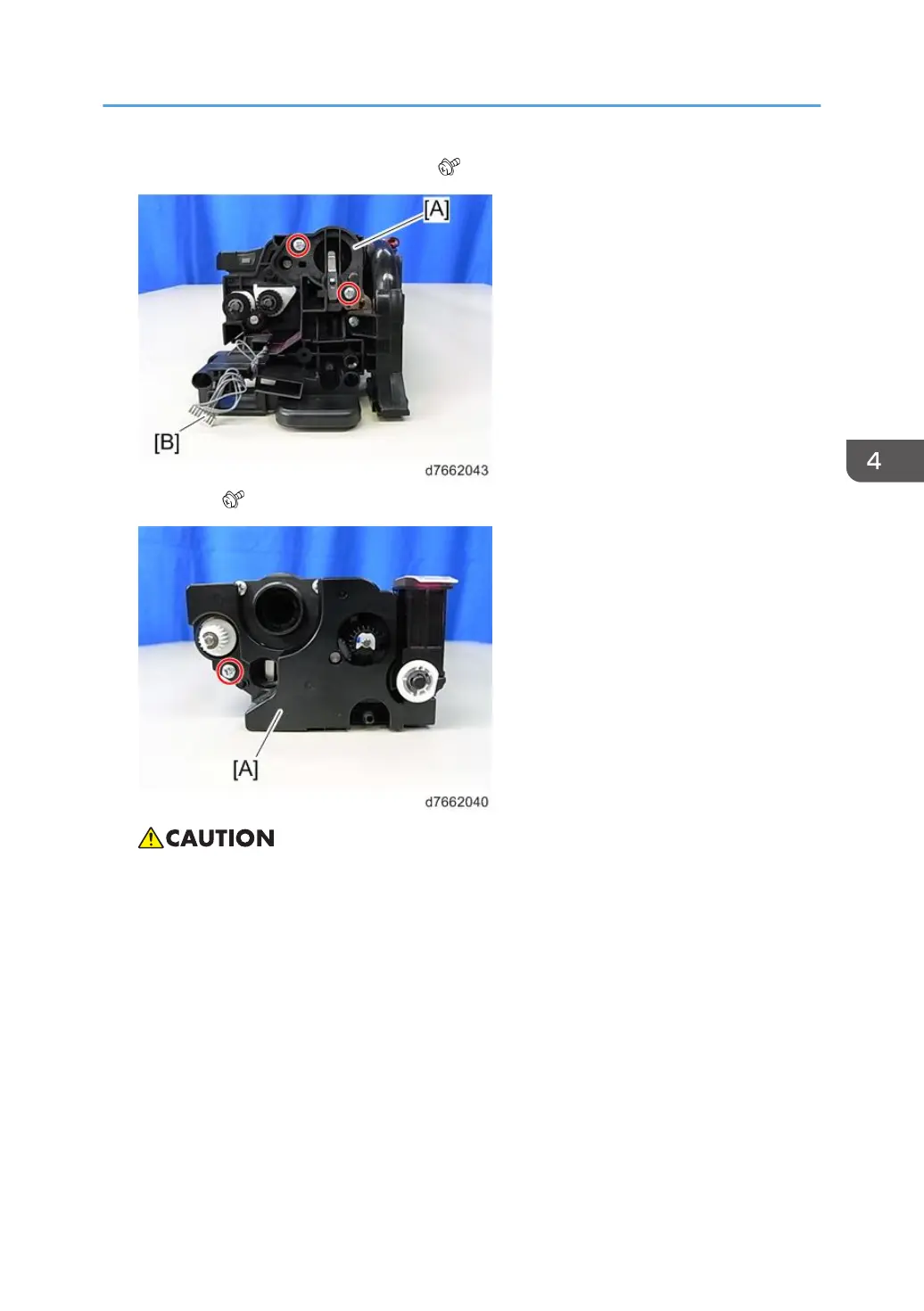

2. Release the connecting part (front) [A] ( x 2) and harness [B].
3. Cover [A] ( x 1).
• Be careful not to break the plate (shown by the red arrow).
• Handle with care to prevent deformation of the plate. Deformation can cause unstable images
due to contact failure. Be sure to attach this cover to the PCDU and install the PCDU in the
mainframe.
PCDU
465
