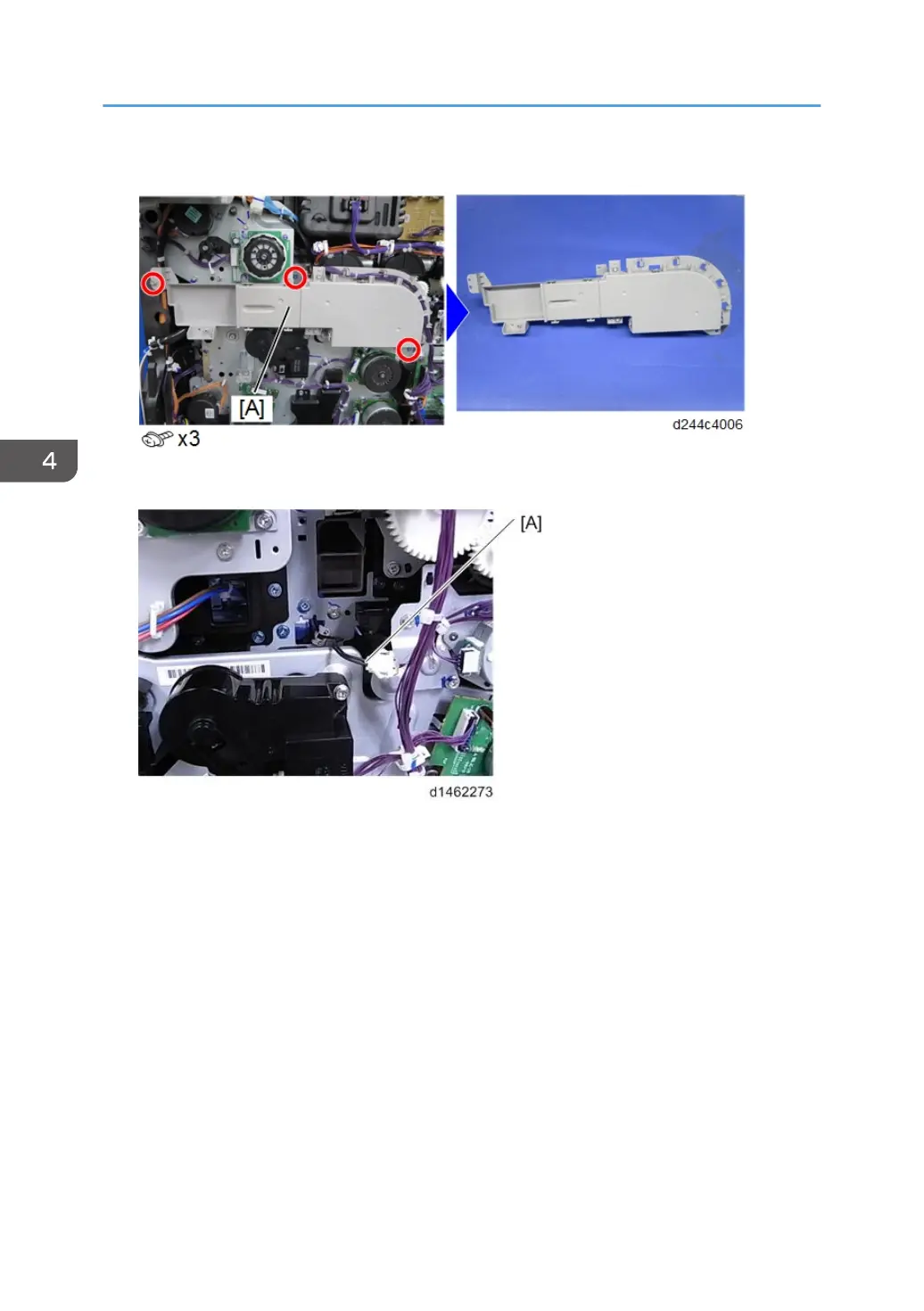

3. Duct [A]

4. Connector [A]

5. Image Transfer Belt Unit (page 474)

6. PCDU (K) (page 459)

4. Replacement and Adjustment

470
