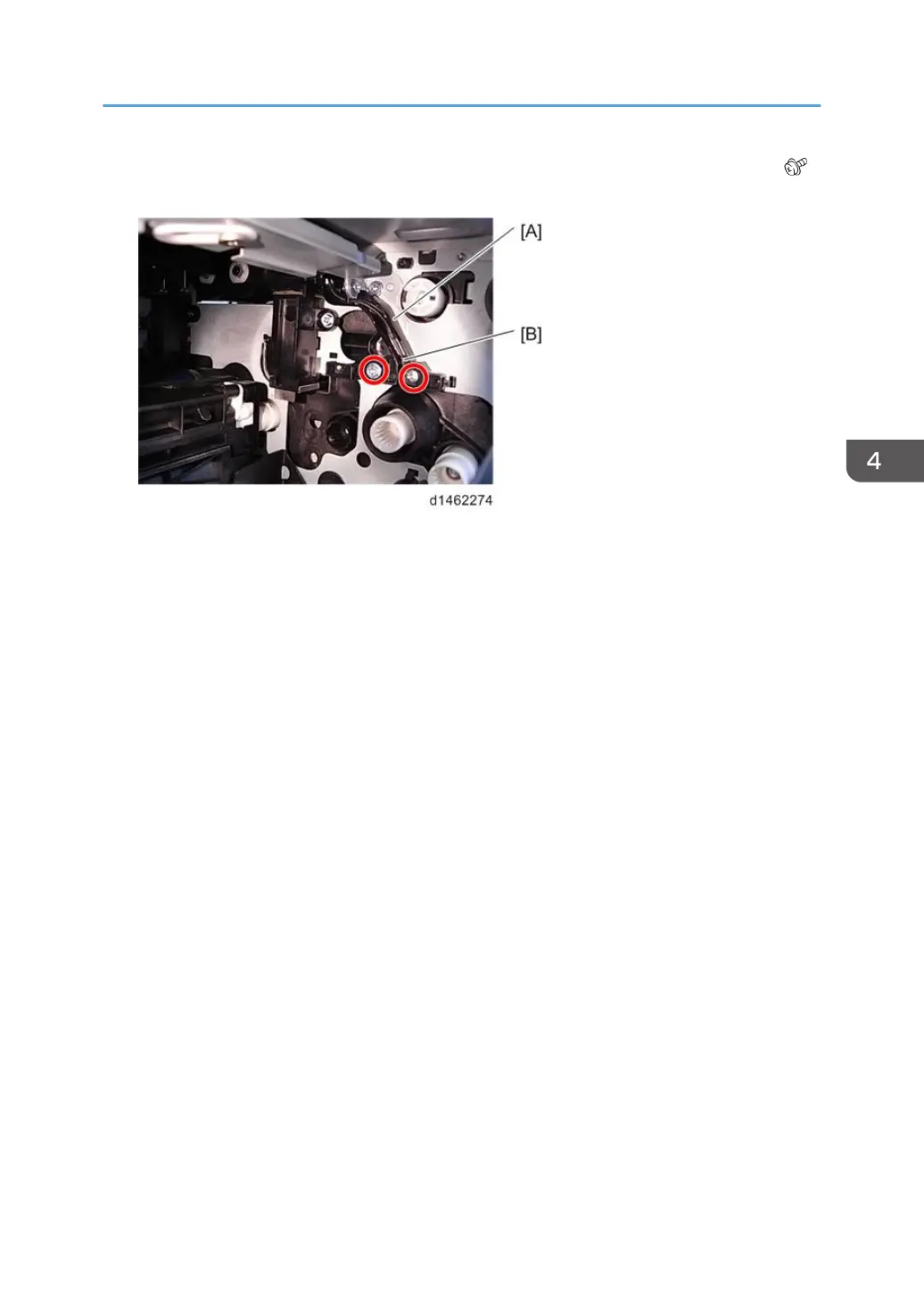

7. Imaging temperature sensor harness guide [A] and Imaging temperature sensor [B] (

×2).

PCDU

471
